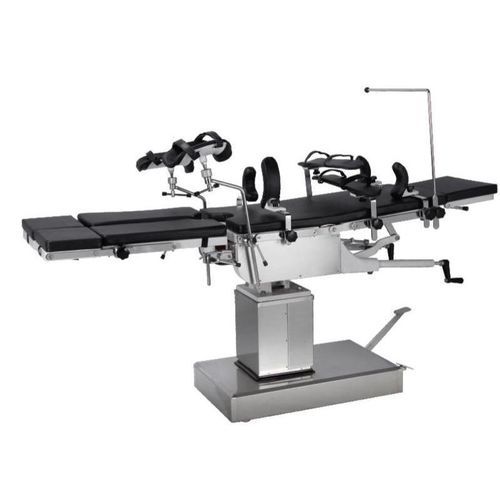

ENT operating table FY503-3 (I)

urologyorthopedicgynecological

Product Overview
This table is intended for general surgery, ENT, renal procedures, orthopedics, gynecology and urology.

• Manual hydraulic operating table with foot pedal for height adjustment.
• Table panel frame is spray-coated; column and base made of #304 stainless steel.
• Guide rails at both ends to attach accessories.
• Back plate adjusted via handwheel located under the head plate.
• Trendelenburg and lateral tilt adjusted by hand crank under the head plate.
• Kidney bridge raised by side hand crank.

Description
Technical Data
Dimensions: 2100 x 480 mm
Functions:
Height range: 800-1050 mm
Trendelenburg: ±25°
Lateral tilt: ±20°
Back section adjustment: +80° / -20°
Head board adjustment: +45° / -90°
Leg board adjustment: -90°
Built-in kidney elevator: 0-120 mm

Technical specifications

• Model: FY503-3 (I)
• Intended use: general surgery, ENT, renal, orthopedics, gynecology and urology
• Operation: manual hydraulic with foot-pedal height control
• Table panel frame: spray-coated
• Column and base material: #304 stainless steel
• Accessory guide rails at both ends
• Back plate adjustment: handwheel under head plate (+80° / -20°)
• Trendelenburg: ±25° (hand crank under head plate)
• Lateral tilt: ±20° (hand crank)
• Head board adjustment: +45° / -90°
• Leg board adjustment: -90°
• Built-in kidney elevator: 0-120 mm (side hand crank)
• Overall dimensions: 2100 x 480 mm
• Height range: 800 - 1050 mm
