Urology operating table FYM200D

ENTgynecologicalorthopedic

Overview
FYM200D is designed for a wide range of surgical specialties including chest, abdominal, ENT, gynaecology & obstetrics, urology and orthopedics. Manual hydraulic lift is operated by a foot pedal; head movements are controlled manually. The base and column cover are manufactured from 304 stainless steel. The tabletop is a composite laminate compatible with X-ray imaging to deliver high-definition radiographic images.

FYM200D Product Parameters
1. Table length/width: ≥2080/≥480 mm
2. Table top minimum height / lifting stroke: ≤790 / ≥240 mm
3. Tilt forward / backward angle: ≥25° / ≥25°
4. Tilt left / right angle: ≥18° / ≥18°
5. Head plate folding up / down angle: ≥45° / ≥90°
6. Leg board folding up / leg board folding down / external folding angle: ≥15° / ≥85° / ≥90°
7. Fold back up / fold back down: ≥90° / ≥10°
8. Waist bridge lift: ≥120 mm

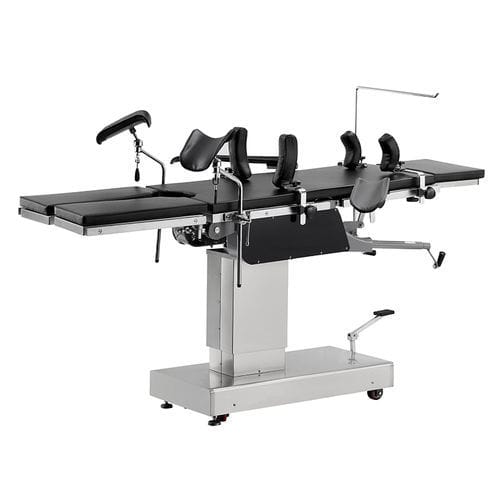

Images (illustrative)
Multiple product images illustrate table configurations, section movements and available accessories. Additional technical drawings and accessory lists can be provided on request.

Features / technical specifications

• Model: FYM200D
• Intended use: chest surgery, abdominal surgery, ENT, gynaecology & obstetrics, urology, orthopedics
• Lifting mechanism: manual hydraulic lift operated by foot pedal
• Head movements: manual adjustment
• Base and column cover: 304 stainless steel
• Tabletop: composite laminate, radiolucent for high-definition X-ray imaging
• Table length/width: ≥2080 mm / ≥480 mm
• Table top minimum height / lifting stroke: ≤790 mm / ≥240 mm
• Tilt forward / backward: ≥25° / ≥25°
• Tilt left / right: ≥18° / ≥18°
• Head plate folding up / down angle: ≥45° / ≥90°
• Leg board folding up / down / external folding angle: ≥15° / ≥85° / ≥90°
• Fold back up / down: ≥90° / ≥10°
• Waist bridge lift: ≥120 mm
