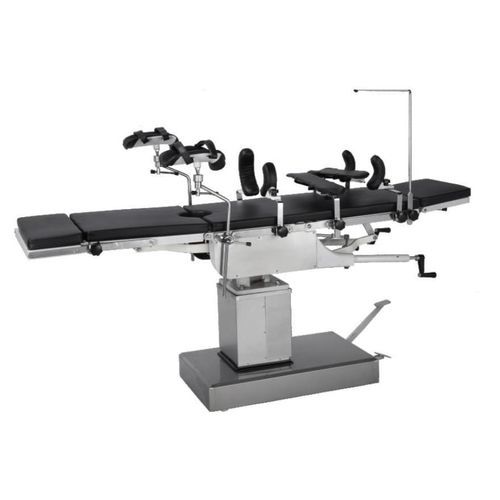

ENT operating table FY503-3

urologyorthopedicgynecological

Overview
This operating table is designed for general surgery, ENT, renal procedures, orthopedics, gynecology and urology. It provides essential positioning functions for a wide range of surgical procedures.

Key features

• Manual hydraulic system with foot pedal for height adjustment.
• Table panel frame with spray-coated finish; column and base in #304 stainless steel.
• Accessory guide rails at both ends for mounting attachments.
• Back section adjusted via handwheel located under the head plate.
• Lateral tilt and Trendelenburg adjustments via hand crank under the head plate.
• Kidney bridge elevation operated by hand crank at the table side (0-120 mm).

Technical data
Dimensions: 2100 x 480 mm
Height range: 800-1050 mm
Trendelenburg: ±25°
Lateral tilt: ±20°
Back section: +80° / -20°
Head board: +45° / -90°
Leg board: -90°
Built-in kidney elevator: 0-120 mm

Specifications

• Model: FY503-3
• Type: Manual hydraulic operating table (foot-pedal height adjustment)
• Table panel frame: Spray-coated
• Column and base: #304 stainless steel
• Accessory guide rails at both ends
• Back plate adjustment: Handwheel under head plate
• Lateral tilt & Trendelenburg adjustment: Hand crank under head plate
• Kidney bridge (elevator) rising adjustment: Hand crank at side (0-120 mm)
• Dimensions: 2100 x 480 mm
• Height range: 800-1050 mm
• Trendelenburg range: ±25°
• Lateral tilt range: ±20°
• Back section adjustment: +80° / -20°
• Head board adjustment: +45° / -90°
• Leg board adjustment: -90°
