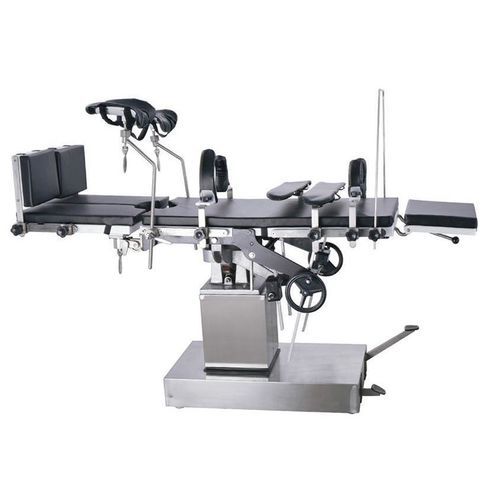

Universal operating table FY503-2 (I)

hydraulictiltingadjustable height

Product Overview

• Manual hydraulic operating table with foot-pedal height adjustment for reliable, non-electrical operation.
• Table panel frame finished with spray coating; column and base made of #304 stainless steel for corrosion resistance.
• Guide rails at both ends accommodate surgical accessories and attachments.
• Back plate adjusted via handwheel located under the back section.
• Lateral tilt and Trendelenburg adjustments operated by hand crank on the table side.
• Built-in kidney bridge with manual rise controlled by a side hand crank.

Description
Technical data
Dimensions: 2000 x 480 mm
Functions:
Height adjustment: 800–1050 mm
Trendelenburg: ±25°
Lateral tilt: ±18°
Back section adjustment: +80° / -18°
Head board adjustment: +45° / -90°
Leg board adjustment: -90°
Built-in kidney elevator: 0–120 mm

Specifications

• Model: FY503-2 (I) Manual Operating Table
• Type: Manual hydraulic operating table
• Height adjustment method: foot pedal
• Table panel finish: spray-coated
• Column and base material: #304 stainless steel
• Guide rails at both ends for accessories
• Back plate adjustment: handwheel under back plate
• Lateral tilt & Trendelenburg adjustment: hand crank at table side
• Kidney bridge rising adjustment: hand crank at table side
• Dimensions: 2000 x 480 mm
• Height adjustment range: 800–1050 mm
• Trendelenburg: ±25°
• Lateral tilt: ±18°
• Back section: +80° / -18°
• Head board adjustment: +45° / -90°
• Leg board adjustment: -90°
• Built-in kidney elevator: 0–120 mm
