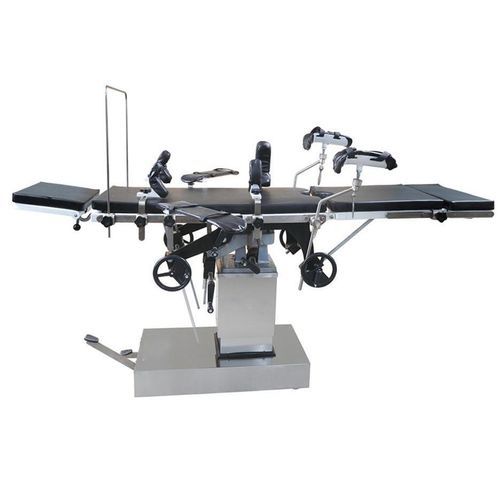

Universal operating table FY503-2

hydraulictiltingadjustable height

Overview
Manual hydraulic operating table designed for general surgical procedures, with foot-pedal height control and multiple manual adjustments for patient positioning.

Key features

• Manual hydraulic system with foot pedal for height adjustment.
• Tabletop dimensions 2000 × 480 mm with spray-coated panel frame.
• Column and base made of #304 stainless steel.
• Guide rails at both ends for accessories.
• Back and leg sections adjustable by handwheel located under the back plate.
• Lateral tilt and Trendelenburg adjustments by side hand crank; built-in kidney bridge adjustable by hand crank.
• Wide range of angular adjustments for head, back and leg sections.

Technical data
Dimensions: 2000 × 480 mm
Height adjustment: 800–1050 mm
Trendelenburg: ±25°
Lateral tilt: ±18°
Back section adjustment: +80° / -18°
Head board adjustment: +45° / -90°
Leg board adjustment: -90°
Built-in kidney elevator travel: 0–120 mm

Construction and materials

• Table panel frame: spray-coated finish.
• Column and base: #304 stainless steel for corrosion resistance and durability.
• Guide rails compatible with standard surgical accessories.

Operation and adjustments

• Height: manual hydraulic control via foot pedal for hands-free operation.
• Back and leg plates: fine adjustment using handwheels under the back plate.
• Lateral tilt, Trendelenburg and kidney bridge: adjusted with hand crank located at the table side.
• Accessories can be mounted on guide rails at both ends of the table.
