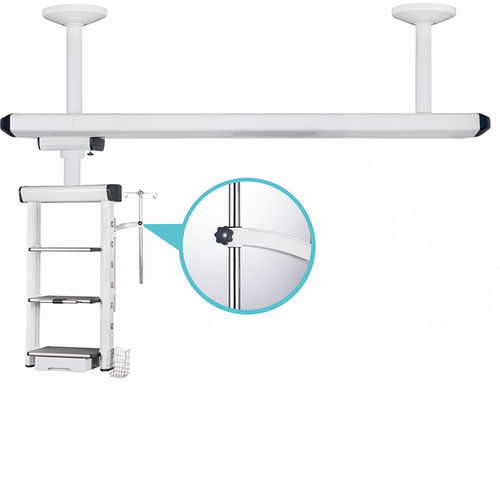

Ceiling-mounted medical pendant SX-214

operating roomheight-adjustablerotary

Product Overview
The SX-214 ceiling-mounted bridge-type medical pendant is engineered for ICU and operating room environments to integrate medical gas, power, network and equipment support with a dry/wet separation layout. The main structure is manufactured from 6063 high-strength aluminum alloy with sealed joints, no exposed screws and rounded edges. Electrostatic matte surface treatment facilitates cleaning and disinfection. Ceiling mounting saves floor space and provides enhanced stability.

Key Features

• High-strength wishbone/bridge arm with 0–340° horizontal rotation; mechanical brake and rotating limit device prevent drifting and enable precise positioning.
• Dry/wet separation isolates gas lines from electrical and network systems for safety and maintenance convenience.
• Stable ceiling installation with sealed joints and concealed fixings to simplify cleaning and infection control.
• Configurable instrument platforms (2–3 tiers) with anti-collision rounded corners and standard side rails for secure equipment placement.
• Standard integration for medical gas terminals, power sockets, RJ45 network and communication interfaces to streamline clinical workflow.

Technical Specifications

• Model: SX-214
• Brand: Suxin
• Working power: AC220V, 50Hz
• Wishbone motion (semidiameter): ≥700 mm (customizable)
• Hanging column length: ≥1000 mm; horizontal rotation: 0–340°; rotating limit device included
• Net load capacity: ≥70 kg (standard); configurable heavy-duty versions up to ≥120 kg; electrical lifting: ≥300 mm
• Instrument platforms: configurable 2–3 tiers; single tray load ≥50 kg; tray size 550×400×30 mm (height adjustable)
• Gas outlets (standard): O2 ×2, VAC ×2, AIR ×2; PVC color-coded tubing; designed for >20,000 cycles
• Network: 1 × RJ45 (extendable)
• Main material: 6063 high-strength aluminum alloy; surface: electrostatic matte finish
• Mounting: ceiling-mounted for greater stability

Standard Configuration

• Oxygen outlets: 2 pcs
• VAC (vacuum): 2 pcs
• Air outlets: 2 pcs
• Power sockets: 7 pcs
• Network interface: 1 pc
• Instrument platforms: 2 pcs
• Drawer: 1 pc
• Earth terminal: 1 pc
• IV pole (stainless steel) with four hooks: 1 set
• Syringe pump rack (stainless steel): 1 set
• Pipe management tools: 2 sets
