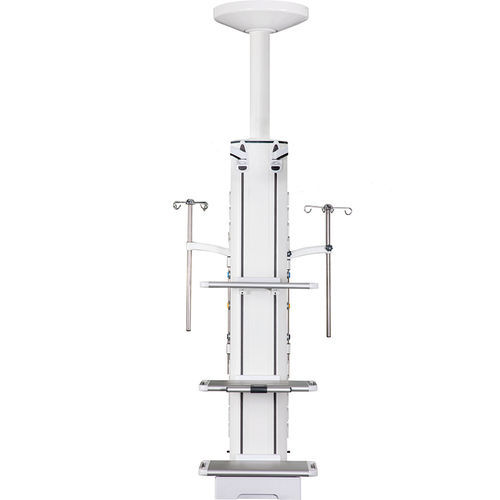

Ceiling-mounted medical pendant SX-217

intensive careoperating roomfixed

Product Name
ICU Medical Column Pendant Tower SX-217 by Suxin. Designed for ceiling-mounted installation in intensive care and operating room environments to centralize medical gas, power and equipment access.

Technical Specifications

• Working Power: AC220V, 50Hz; gas and electrical systems separated for safety.
• Wishbone motion semidiameter: ≥700mm (customizable).
• Terminal column length: ≥1000mm; rotation range 0–340° with rotation limit device to prevent drift.
• Net load capacity: ≥70kg; electrical lifting stroke: ≥300mm.
• Instrument platforms: two layers; tray type: pressed single-piece with anti-corrosion surface; single tray load ≥50kg; tray size 550×400×30mm (height adjustable); 10×25mm side rail; rounded corners for collision protection.
• Gas outlets: standard O2×2, VAC×2, AIR×2 (configurable). Different colors/shapes per gas; PVC flexible tubing with color coding; cycle life >20,000 operations.
• Network interface: 1×RJ45 (socket extendable).
• Main material: 6063 high-strength aluminum alloy; no exposed screws; electrostatic matte finish for easy cleaning and corrosion resistance.
• Mounting: ceiling mounted for maximum stability.

Configuration

• 1 | Oxygen | 2 | pc
• 2 | VAC | 2 | pc
• 3 | Air | 2 | pc
• 4 | Power Socket | 7 | pc
• 5 | Network Interface | 1 | pc
• 6 | Instrument Platform | 2 | pc
• 7 | Drawer | 1 | pc
• 8 | Earth Terminal | 1 | pc
• 9 | IV Pole with four hooks (Stainless steel) | 1 | set
• 10 | Syringe Pump Rack (Stainless steel) | 1 | set
• 11 | Pipe Management Tools | 2 | sets

Technical Specifications

• Model: SX-217
• Brand: Suxin
• HS Code: 9402900000
• Working Power: AC220V, 50Hz
• Wishbone motion range: ≥700mm (customizable)
• Terminal column length: ≥1000mm; rotation 0–340° with rotation limit device
• Net load capacity: ≥70kg; electrical lifting: ≥300mm
• Instrument platforms: two-layer trays; single tray load ≥50kg; tray size 550×400×30mm (adjustable)
• Gas outlets standard: O2×2, VAC×2, AIR×2 (customizable)
• Network interface: RJ45 (1 pc, extendable)
• Main material: 6063 high-strength aluminum alloy; electrostatic matte surface
• Installation: ceiling mounted
