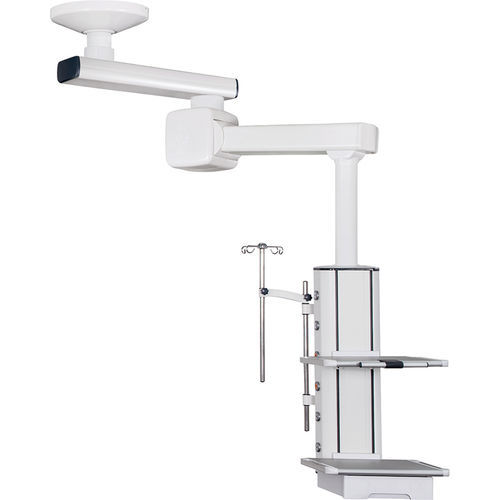

Ceiling-mounted medical pendant SX-202

intensive careoperating roomheight-adjustable

Product overview
Ceiling-mounted motorized surgical pendant for operating theatres and ICU rooms. Integrates medical gas outlets, electrical sockets and data interfaces with adjustable instrument platforms and electrical vertical adjustment to support surgical and intensive-care workflows.

Key features

• Ceiling-mounted, motorized lift with electrical height adjustment ≥300 mm.
• Working power: AC220V, 50Hz; gas and electrical systems separated.
• Wishbone motion semidiameter ≥700 mm (customizable) and rotating angle 0–340° with rotation limit device to prevent drifting.
• Net load capacity ≥70 kg; instrument trays: 2 layers, single tray load ≥50 kg; tray dimensions 550×400×30 mm (height adjustable).
• Gas outlets standard: O2×2, VAC×2, AIR×2 (customizable); color-coded PVC tubing; >20,000 cycle design.
• One RJ45 network port; electrical sockets configurable (standard 7 sockets).
• Main body: 6063 high-strength aluminum alloy with electrostatic matt finish for easy disinfection; no exposed screws or sharp corners.

Technical specifications

• Model: SX-202
• Brand: Suxin
• HS/Code: 9402900000
• Working Power: AC220V, 50Hz
• Wishbone motion semidiameter: ≥700 mm (customizable)
• Hanging column length: ≥1000 mm; rotation range: 0–340° with limit device
• Net load capacity: ≥70 kg; electrical lifting: ≥300 mm
• Instrument trays: 2 layers; single tray load ≥50 kg; tray size 550×400×30 mm (adjustable)
• Gas outlets: O2×2, VAC×2, AIR×2 (configurable)
• Network: RJ45 (expandable)
• Material: 6063 aluminum alloy; surface: electrostatic matt finish
• Mounting: Ceiling-mounted

Standard configuration

• 1 | Oxygen | 2 | pc
• 2 | VAC | 2 | pc
• 3 | Air | 2 | pc
• 4 | Power Socket | 7 | pc
• 5 | Network Interface | 1 | pc
• 6 | Instrument Platform | 2 | pc
• 7 | Drawer | 1 | pc
• 8 | Earth Terminal | 1 | pc
• 9 | IV Pole with four hooks (Stainless steel) | 1 | set
• 10 | Syringe Pump Rack (Stainless steel) | 1 | set
• 11 | Pipe Management Tools | 2 | sets

Installation & materials

• Main body: 6063 high-strength aluminum alloy; sealed joints and no exposed screws.
• Surface treatment: electrostatic spraying, matt finish; designed for easy cleaning and disinfection.
• Gas outlets use color-coded PVC flexible tubing; gas and electrical separation design for safety.
• Ceiling-mounted installation recommended for stability; rotation limit device and anti-collision rounded corners.

Product details

• Model: SX-202
• Brand: Suxin
• HS/Code: 9402900000
