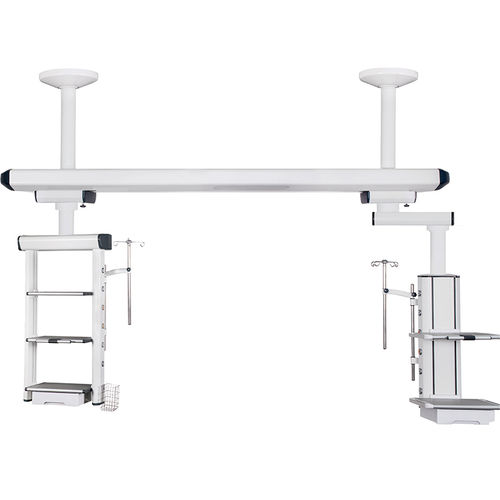

Ceiling-mounted double medical pendant SX-215operating roomrotary2-arm
Add to favorites
Compare this product
Characteristics
- Installation
- ceiling-mounted
- Applications
- operating room
- Configuration
- 2-arm, rotary
- Other characteristics
- with shelves, with column
- Load capacity
70 kg
(154 lb)
Description
Product Description
Configuration
Product Details
Notes
- Intended use: Ceiling-mounted medical pendant designed for ICU use, providing separated gas and electrical channels and stable support for medical equipment.
- Power supply: AC 220V, 50Hz.
- Wishbone motion range (semidiameter): ≥700 mm; customizable on request.
- Hanging column: Terminal box hanging column length ≥1000 mm; rotation angle 0–340° with a rotation limit device to prevent drift.
- Load capacity: Net load ≥70 kg; Electric lifting stroke: ≥300 mm.
- Instrument platforms: Two tiers. Trays are pressed type with anti-corrosion surface; single tray load ≥50 kg; dimensions 550 mm × 400 mm × 30 mm (height adjustable). Standard side rail 10 mm × 25 mm; rounded corners for collision protection.
- Gas outlets: O2 ×2, VAC ×2, AIR ×2; configurable per customer. Distinct colors and shapes for outlets; designed life cycle >20,000 operations. Flexible terminal tubing in PVC with color coding.
- Network interface: 1 × RJ45; socket extension possible.
- Structure and finish: Main body in 6063 high-strength aluminum alloy; no exposed screws or sharp edges. Surface treated with electrostatic matte coating for corrosion resistance and ease of cleaning and disinfection.
- Installation: Ceiling-mounted for increased stability.
Configuration
- 1 — Oxygen — 2 — pc
- 2 — VAC — 2 — pc
- 3 — Air — 2 — pc
- 4 — Power Socket — 7 — pc
- 5 — Network Interface — 1 — pc
- 6 — Instrument Platform — 2 — pc
- 7 — Drawer — 1 — pc
- 8 — Earth Terminal — 1 — pc
- 9 — IV Pole with four hooks (Stainless steel material) — 1 — set
- 10 — Syringe Pump Rack (Stainless steel material) — 1 — set
- 11 — Pipe Management Tools — 2 — sets
Product Details
- Model: SX-215
- Brand: Suxin
- Code: 9402900000
Notes
- The pendant is designed for ICU/hospital use with emphasis on separation of gas and electrical channels, stable rotation via a limit device, modular instrument platforms and configurable gas/outlet layout.
