Ceiling-mounted medical pendant SX-216
intensive careoperating roomarticulated

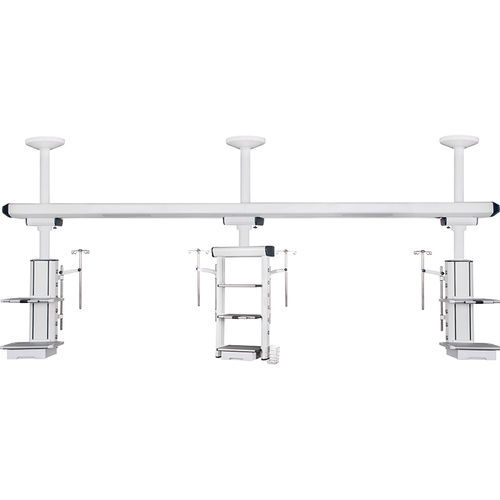

Ceiling-mounted medical pendant - SX-216 - Jiangsu Suxin Medical Equipment - intensive care / operating room / articulated
Ceiling-mounted medical pendant - SX-216 - Jiangsu Suxin Medical Equipment - intensive care / operating room / articulated
Ceiling-mounted medical pendant - SX-216 - Jiangsu Suxin Medical Equipment - intensive care / operating room / articulated - image - 2
Add to favorites
Compare this product
Go to the Jiangsu Suxin Medical Equipment website for more information

Characteristics

Installation
ceiling-mounted
Applications
intensive care, operating room
Configuration
articulated, height-adjustable, rotary
Other characteristics
with column
Load capacity

70 kg
(154 lb)

Description

Product overview
  • Suxin SX-216 medical ceiling pendant for operating rooms and intensive care: ceiling-mounted hanging tower with integrated drawer and two instrument platforms, providing gas, power and network outlets for clinical devices.
  • Adjustable wishbone motion semidiameter ≥700mm (customizable); hanging column length ≥1000mm with 0–340° rotation and rotating limit device to prevent drift.


Technical specifications
  • Model: SX-216
  • Brand: Suxin
  • Code: 9402900000
  • Working power: AC220V, 50Hz
  • Wishbone motion semidiameter: ≥700mm (customizable)
  • Hanging column length: ≥1000mm; rotating angle: 0–340°
  • Net load capacity: ≥70KG; Electrical lifting: ≥300mm
  • Instrument platforms: two layers; tray load capacity ≥50kg; tray size 550×400×30mm (adjustable height)
  • Gas outlets: O2×2, VAC×2, AIR×2 (configurable)
  • Network interface: 1×RJ45 (extendable)
  • Material: 6063 high-strength aluminum alloy
  • Surface treatment: electrostatic spraying, matt finish, anti-corrosion
  • Mounting: ceiling mounted


Standard configuration
  • Oxygen: 2 pcs
  • VAC: 2 pcs
  • Air: 2 pcs
  • Power socket: 7 pcs
  • Network interface: 1 pc
  • Instrument platform: 2 pcs
  • Drawer: 1 pc
  • Earth terminal: 1 pc
  • IV pole with four hooks (stainless steel): 1 set
  • Syringe pump rack (stainless steel): 1 set
  • Pipe management tools: 2 sets


Materials, finish and maintenance
  • Main body: 6063 high-strength aluminum alloy; no exposed screws and no sharp corners.
  • Surface: electrostatic spraying, matt treatment for easy cleaning and disinfection; anti-corrosion.
  • Instrument trays: pressed type, round-angle anti-collision design; single tray load ≥50kg.
  • Terminal flexible tubes: PVC, color-coded; gas outlet colors/shapes configurable.
  • Mobility: designed for >20,000 cycles; rotating limit device keeps pendant stable; ceiling mounting for increased stability.
