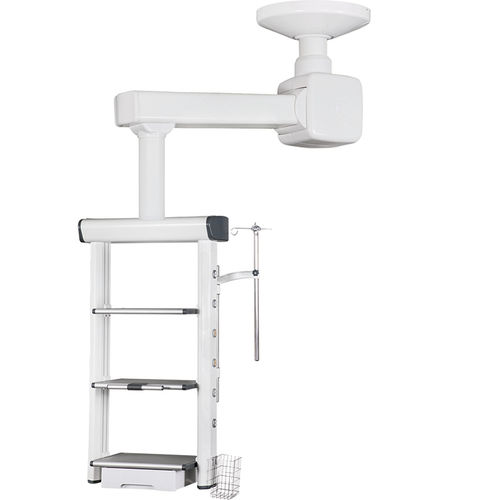

Ceiling-mounted medical pendant SX-205

endoscopyoperating roomheight-adjustable

Product Overview
The SX-205 is a ceiling-mounted, single-arm electric endoscope tower designed as an integrated medical gas and electrical pendant and a support platform for endoscopic instruments in operating rooms and procedure suites.

Technical Specifications

• Model: SX-205
• Working power: AC 220V, 50Hz
• Wishbone motion range (semidiameter): ≥700 mm (customizable)
• Terminal hanging column length: ≥1000 mm; horizontal rotation: 0–340° with rotation limiting device
• Net load capacity: ≥70 kg; electrical lifting stroke: ≥300 mm
• Instrument platforms: two tiers; standard tray size 550 × 400 × 30 mm (height adjustable); single tray load ≥50 kg; 10 × 25 mm side rail; rounded anti-collision design
• Gas outlets: O2 ×2, VAC ×2, AIR ×2 (configurable); color-coded outlets and PVC flexible tubing; designed for >20,000 cycles
• Network interface: 1 × RJ45 (extendable)
• Main material: 6063 high-strength aluminum alloy; no exposed screws or sharp corners
• Surface finish: matte electrostatic spray — easy to clean and disinfect
• Mounting: ceiling-mounted for improved stability

Configuration & Accessories

• Oxygen outlets: 2 pcs
• VAC (suction) outlets: 2 pcs
• Compressed air outlets: 2 pcs
• Power sockets: 7 pcs (220V/10A)
• Network interface: 1 pc (RJ45)
• Instrument platforms: 2 pcs
• Drawer: 1 pc
• Earth terminal: 1 pc
• IV pole with four hooks (stainless steel): 1 set
• Syringe pump rack (stainless steel): 1 set
• Pipe management tools: 2 sets

Applications

• Operating rooms, endoscopy suites and procedure rooms requiring integrated medical gas, power and instrument support for endoscopic procedures.

Manufacturer & Support

• Manufacturer: Jiangsu Suxin Medical Equipment Co., Ltd.
• Supplied with technical documentation and manufacturer after‑sales support.
