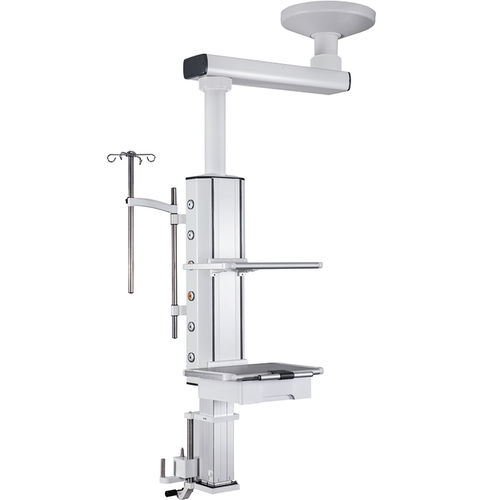

Ceiling-mounted medical pendant SX-210

intensive careanesthesiaICU

Product Overview
The SX-210 single-arm electric anesthesia pendant by Suxin is a ceiling-mounted medical pendant for operating rooms and intensive care units. It integrates medical gas outlets, electrical sockets, instrument platforms and accessory mounts in a compact, adjustable configuration with electric lift and wide horizontal rotation for flexible positioning.

Key Features

• Model: SX-210; Brand: Suxin.
• Power: AC 220 V, 50 Hz.
• Arm radius (semidiameter): 750 mm (configurable).
• Horizontal rotation: 0–340° with rotation limit device to prevent drift.
• Net load capacity: ≥120 kg; electrical lifting stroke: ≥300 mm.
• Instrument platforms: 1–2 levels (configurable), trays with rounded corners and standard side rails; single tray load ≥50 kg; typical tray size 550 × 400 × 30 mm.
• Standard gas outlets: O2, VAC (vacuum), AIR — typical counts O2×2, VAC×2, AIR (configurable); outlets differentiated by color/shape; insertion cycles >20,000.
• Electrical: standard sockets (typ. 7 × 220 V, 10 A) and 1 × RJ45 network interface (expandable).
• Material and finish: 6063 high-strength aluminum alloy profiles with electrostatic matt surface treatment; no exposed screws, rounded edges.
• Mounting: ceiling-mounted for improved stability and floor-space clearance.

Technical Specifications

• Working power: AC 220 V, 50 Hz.
• Arm motion range (semidiameter): ≥750 mm (customizable).
• Hanging column length: ≥1000 mm; rotation 0–340° with locking/limit device.
• Net load capacity: ≥120 kg; electrical lifting stroke: ≥300 mm.
• Instrument tray load: ≥50 kg; tray size typically 550 × 400 × 30 mm (height adjustable).
• Gas outlets: standard configuration O2×2, VAC×2, AIR (configurable); outlet components >20,000 cycles; secondary sealing with three states (pass, break, pull).
• Network: 1 × RJ45 (expandable).
• Material: 6063 aluminum alloy; surface: electrostatic matt finish.
• Installation: ceiling-mounted.

Standard Configuration (Accessories)

• 1. Oxygen outlets — 2 pcs
• 2. VAC outlets — 2 pcs
• 3. Air outlets — 1–2 pcs (configurable)
• 4. Power sockets — 7 pcs
• 5. Network interface (RJ45) — 1 pc
• 6. Instrument platform(s) — 1–2 pcs
• 7. Drawer — 1 pc
• 8. Earth terminal — 1 pc
• 9. IV pole with four hooks (stainless steel) — 1 set
• 10. Syringe pump rack (stainless steel) — 1 set
• 11. Pipe management tools — 2 sets

Applications and Maintenance
Intended for anesthesia workstations in operating theatres, recovery rooms and intensive care units. Ceiling mounting frees floor space and improves ergonomics. Regular maintenance should include inspection of gas outlets, verification of electrical connections, functional check of rotation/locking mechanisms and lubrication or service of the lifting unit. Final configuration and commissioning must be performed by the facility's biomedical engineering team or qualified technicians.
