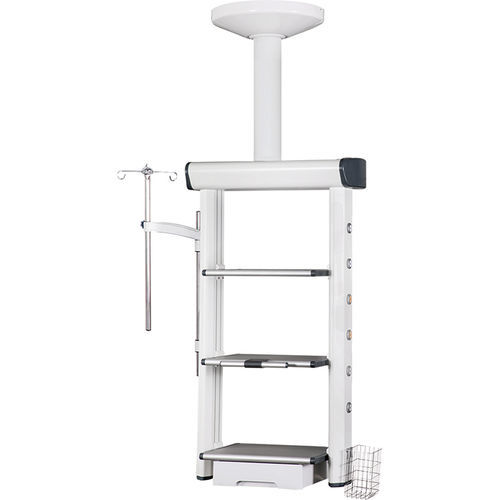

Ceiling-mounted medical pendant SX-218
endoscopyarticulatedheight-adjustable

Ceiling-mounted medical pendant - SX-218 - Jiangsu Suxin Medical Equipment - endoscopy / articulated / height-adjustable
Ceiling-mounted medical pendant - SX-218 - Jiangsu Suxin Medical Equipment - endoscopy / articulated / height-adjustable
Add to favorites
Compare this product
Go to the Jiangsu Suxin Medical Equipment website for more information

Characteristics

Installation
ceiling-mounted
Applications
endoscopy
Configuration
articulated, height-adjustable
Other characteristics
with shelves, with column
Load capacity

70 kg
(154 lb)

Description

Product Overview
  • Ceiling-mounted medical vertical pendant designed for ICU and endoscopy suites to integrate medical gas, electrical power, data interfaces and instrument platforms while ensuring hygiene and operational safety.


Key Features
  • Ceiling-mounted vertical design with wishbone arm for flexible positioning; wishbone semidiameter ≥700mm (customizable).
  • Two instrument platforms (tray type) with rounded anti-collision edges; single tray load ≥50 kg; tray size 550×400×30 mm (height adjustable).
  • Standard medical gas outlets: O2×2, VAC×2, AIR×2; PVC flexible tubes, color-coded; gas and electrical systems separated.
  • Net load capacity ≥70 kg with electrical lifting stroke ≥300 mm; terminal hanging column length ≥1000 mm with 0–340° rotation and rotation limit device for stability.
  • One RJ45 network port (extensible) and seven power sockets standard; main body 6063 high-strength aluminum alloy with electrostatic matt finish for easy disinfection.


Technical Specifications
  • Model: SX-218; Brand: Suxin; Working Power: AC220V, 50Hz.
  • Wishbone motion semidiameter: ≥700 mm (customizable); terminal hanging column length: ≥1000 mm; rotation: 0–340° with limit device.
  • Net load capacity: ≥70 kg; Electrical lifting stroke: ≥300 mm.
  • Instrument platforms: two layers; single tray load ≥50 kg; tray dimensions: 550 × 400 × 30 mm (adjustable).
  • Gas outlets (standard): O2×2, VAC×2, AIR×2 (customizable); terminal flexible tube: PVC, color-coded; lifecycle >20,000 cycles.
  • Network: 1 × RJ45 (extensible); Main body material: 6063 aluminum alloy; Surface: electrostatic matt (anti-corrosion, easy to disinfect); Mounting: ceiling-mounted.


Configuration
  • 1. Oxygen — 2 pc
  • 2. VAC — 2 pc
  • 3. Air — 2 pc
  • 4. Power Socket — 7 pc
  • 5. Network Interface — 1 pc
  • 6. Instrument Platform — 2 pc
  • 7. Drawer — 1 pc
  • 8. Earth Terminal — 1 pc
  • 9. IV Pole with four hooks (stainless steel) — 1 set
  • 10. Syringe Pump Rack (stainless steel) — 1 set
  • 11. Pipe Management Tools — 2 sets


Product specifics
  • Model: SX-218
  • Brand: Suxin
  • HS Code: 9402900000
