Ceiling-mounted medical pendant SX-207
intensive careoperating roomheight-adjustable

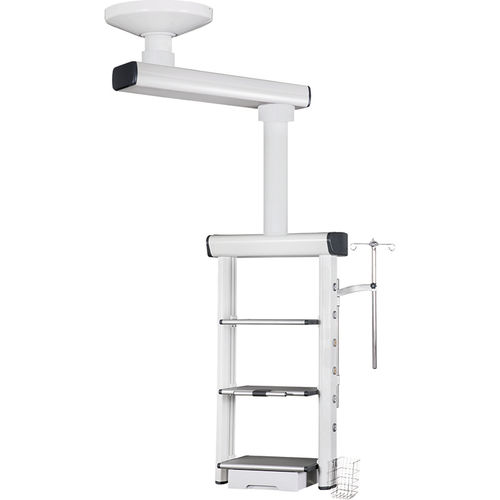

Ceiling-mounted medical pendant - SX-207 - Jiangsu Suxin Medical Equipment - intensive care / operating room / height-adjustable
Ceiling-mounted medical pendant - SX-207 - Jiangsu Suxin Medical Equipment - intensive care / operating room / height-adjustable
Ceiling-mounted medical pendant - SX-207 - Jiangsu Suxin Medical Equipment - intensive care / operating room / height-adjustable - image - 2
Ceiling-mounted medical pendant - SX-207 - Jiangsu Suxin Medical Equipment - intensive care / operating room / height-adjustable - image - 3
Add to favorites
Compare this product
Go to the Jiangsu Suxin Medical Equipment website for more information

Characteristics

Installation
ceiling-mounted
Applications
intensive care, operating room
Configuration
single-arm, height-adjustable, rotary
Other characteristics
with shelves, with column
Load capacity

70 kg
(154 lb)

Description

Overview
  • Ceiling-mounted single-arm surgical pendant SX-207 designed to support instruments, provide medical gas outlets and electrical/network interfaces for operating rooms and intensive care units.


Key specifications
  • Model: SX-207
  • Brand: Suxin
  • Working power: AC 220V, 50Hz
  • Wishbone motion range (semidiameter): ≥700 mm (customizable)
  • Terminal hanging column length: ≥1000 mm; horizontal rotation 0–340° with rotation-limit device
  • Net load capacity: ≥70 kg
  • Electrical lifting stroke: ≥300 mm
  • Instrument platforms: two layers; single tray load ≥50 kg; tray dimensions 550 × 400 × 30 mm (adjustable height); 10 × 25 mm side rail; rounded anti-collision edges
  • Gas outlets: O2 ×2, VAC ×2, AIR ×2 (configurable)
  • Network: 1 × RJ45 (extendable)
  • Body material: 6063 high-strength aluminum alloy
  • Surface: electrostatic spray, matt finish, easy to disinfect
  • Mounting: ceiling-mounted for improved stability


Gas outlets & interfaces
  • Color- and shape-coded gas outlets to prevent misconnection
  • Flexible tubing: PVC, color-coded per line
  • Designed insertion/removal durability: >20,000 cycles


Configuration / Accessories
  • Oxygen outlets ×2
  • VAC outlets ×2
  • Air outlets ×2
  • Power sockets ×7
  • Network interface ×1
  • Instrument platforms ×2
  • Drawer ×1
  • Earth terminal ×1
  • IV pole with four hooks (stainless steel) ×1 set
  • Syringe pump rack (stainless steel) ×1 set
  • Pipe management tools ×2 sets


Materials, safety & maintenance
  • Main structure: 6063 aluminum alloy with no exposed screws or sharp edges
  • Surface: anti-corrosion electrostatic coating, matt finish for easy cleaning and disinfection
  • Mechanical brake and rotation limit prevent drifting; rounded edges reduce collision risk
  • Components designed for on-site serviceability and maintenance


Options & customization
  • Arm reach, rotation limits and tray configuration customizable to room layout
  • Gas outlet types, colors and shapes selectable per customer requirements
  • Additional sockets, network ports or tray accessories available on request
