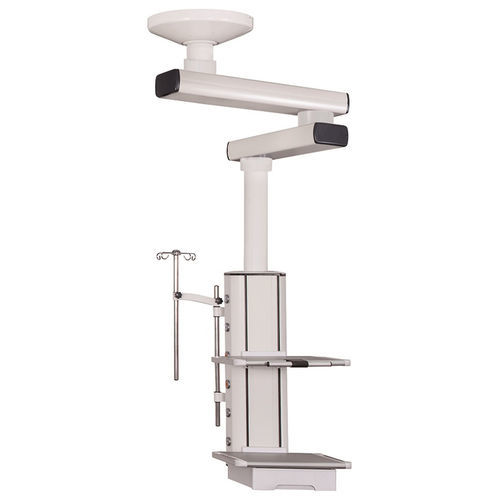

Ceiling-mounted double medical pendant SX-204operating roomrotary2-arm
Add to favorites
Compare this product
Characteristics
- Installation
- ceiling-mounted
- Applications
- operating room
- Configuration
- 2-arm, rotary
- Other characteristics
- with shelves, with column
- Load capacity
70 kg
(154 lb)
Description
Product description
Technical specifications
Configuration
Notes
Technical data / specifications
Technical specifications
- Working power: AC220V, 50Hz.
- Wishbone motion range (semidiameter): ≥700 mm (customizable).
- Hanging column length: ≥1000 mm; rotation: 0–340°; rotation limit device for stable positioning.
- Net load capacity: ≥70 kg; electrical lifting stroke: ≥300 mm.
- Instrument platforms: two layers; tray: pressed model with anti-corrosion and anti-rust surface; single tray load ≥50 kg; dimensions 550 × 400 × 30 mm (height adjustable); standard side rail 10 × 25 mm; rounded corners for collision protection.
- Gas outlets: O2 ×2, VAC ×2, AIR ×2 (customizable); distinct colors/shapes for identification; PVC flexible tubing with color coding; cycle life >20,000 uses.
- Network interface: 1 × RJ45 (expandable).
- Main body material: 6063 high-strength aluminum alloy; no sharp corners or exposed screws.
- Surface treatment: electrostatic spray, matt finish, anti-corrosion, easy to clean and disinfect.
- Mounting: ceiling-mounted for stability.
Configuration
- Oxygen: 2 pcs
- VAC: 2 pcs
- Air: 2 pcs
- Power sockets: 7 pcs
- Network interface: 1 pc
- Instrument platforms: 2 pcs
- Drawer: 1 pc
- Earth terminal: 1 pc
- IV pole with four hooks (stainless steel): 1 set
- Syringe pump rack (stainless steel): 1 set
- Pipe management tools: 2 sets
Notes
- Tray dimensions and load, gas outlet types and counts, and other configuration items can be customized to user requirements.
- Design emphasizes sealed joints, separation of gas and electrical systems, and ease of cleaning and disinfection.
Technical data / specifications
- Model: SX-204
- Brand: Suxin
- Code: 9402900000
- Working power: AC220V, 50Hz
- Wishbone motion range: ≥700 mm (customizable)
- Hanging column length: ≥1000 mm; rotation 0–340° with stabilizing limit device
- Net load capacity: ≥70 kg
- Electrical lifting stroke: ≥300 mm
- Instrument platforms: two layers; single tray load ≥50 kg; adjustable height; anti-corrosion/rust treatment
- Gas outlets standard: O2×2, VAC×2, AIR×2 (customizable); PVC flexible tubing with color coding; >20,000 use cycles
- Network: 1 × RJ45 (expandable)
- Material: 6063 high-strength aluminum alloy
- Surface finish: electrostatic spray, matt, anti-corrosion
- Mounting: ceiling-mounted
