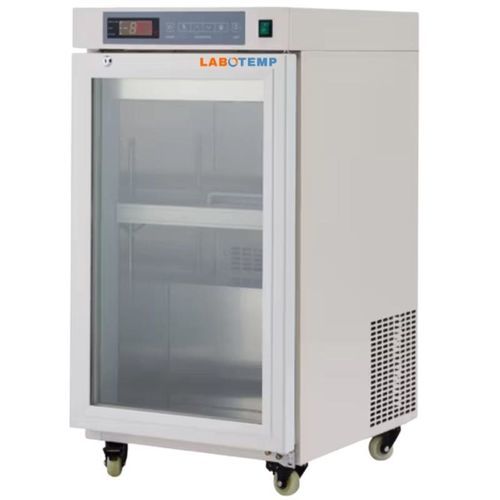

Pharmacy refrigerator PHR-01

for vaccinesfor hospitalslaboratory

Overview
Labotemp PHR-01 is a compact 50 L pharmaceutical and vaccine refrigerator designed for stable storage at +2°C to +8°C. The unit combines a Secop compressor, fluorine‑free refrigerant, 304 stainless‑steel interior and a galvanized sprayed exterior, with microprocessor control and a digital display. It includes a lockable door and audible/visual alarms for use in hospitals, pharmacies, clinics and research laboratories requiring controlled temperature storage.

Key benefits

• Space-saving 50 L cabinet with lockable door for secure storage
• Audible and visual alarms for temperature deviations and door-ajar conditions
• Secop compressor and Germany EBM condensing fan for continuous, low-noise operation
• Air-cooling and internal ventilation ensure uniform temperature distribution

Features

• Operating range +2°C to +8°C, adjustable with 0.1°C resolution
• Electronic microprocessor thermostat with digital display for precise control
• Audible and visual alarms for high/low temperature and door open
• 304 stainless-steel interior for hygiene and easy cleaning
• Galvanized sprayed exterior for durability
• Lockable door and microprocessor control system
• Voltage 220 V 50 Hz, input power 220 W

Applications

• Storage of vaccines, pharmaceuticals, biological reagents and clinical samples in hospitals, pharmacies, clinics and laboratories

Technical specifications

• Model: PHR-01
• Capacity: 50 L (1.77 cu.ft.)
• Temperature range: +2°C to +8°C
• Compressor: Secop
• Voltage: 220 V 50 Hz
• Input power: 220 W
• Temperature adjustment unit: 0.1°C
• Thermostat: electronic microprocessor
• Display: digital
• Exterior size: 450 × 510 × 700 mm
• Inner size: 360 × 360 × 480 mm
• Exterior material: galvanized sheet sprayed
• Inner material: 304 stainless steel
• Lock: yes
• Control system: microprocessor control
• Ambient temperature: 16–32°C
• Environmental humidity: 20–80%
• Alarm: audible and visual for high/low temperature and door ajar
• Net weight: 32 kg
• Gross weight: 45.5 kg
• Packing size: 510 × 570 × 825 mm
