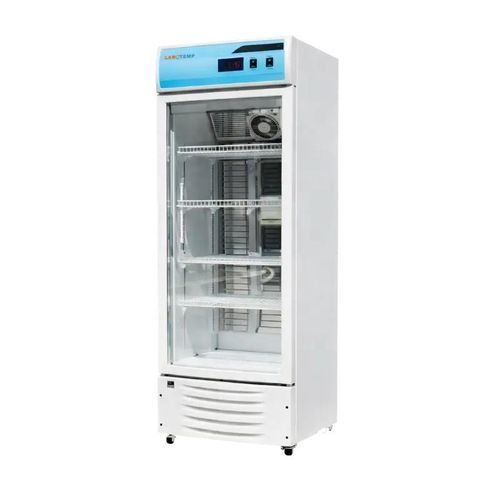

Pharmacy refrigerator PHR-18

for vaccineshospitalblood bank

Product overview
Labotemp Pharmaceutical and Vaccine Refrigerator PHR-18 is a medical-grade 360 L refrigerated cabinet engineered to maintain stable 2–8 °C conditions for storage of vaccines, medicines and other temperature-sensitive medical supplies. The unit integrates a microprocessor controller with LED digital display, single glass door with safety lock, interior LED illumination and mobile castors to support inventory workflows in hospital pharmacies, clinics and laboratories.

Key benefits

• Capacity: 360 L central storage for vaccines and medications
• Temperature security: precise 2–8 °C control with multi-level audible/visual alarms for high/low temperature, power failure, door-ajar and sensor/system faults
• Operational efficiency: LED display, glass-door visibility and adjustable shelves for fast stock checks and flexible layout

Features

• Auto defrost system
• Forced-air circulation with internal fan for uniform temperature distribution
• Temperature calibration and microprocessor controller for accurate regulation
• Password-protected control panel and keyboard lock to prevent unauthorized changes
• Multi-level buzzer and flashing alarms with fault-code display
• Power-failure memory to retain settings after outages
• Wide voltage tolerance (187–242 V)
• Adjustable steel-wire shelves
• Transparent glass door and interior LED illumination for quick visual inspection
• Eco-friendly R600a refrigerant (CFC-free) and PURF insulation

Applications

• Controlled 2–8 °C storage of vaccines, medicines, reagents and other temperature-sensitive healthcare materials
• Suitable for hospital pharmacies, clinical and diagnostic laboratories, blood banks, immunization centers and biomedical research facilities

Technical specifications

• Capacity: 360 L
• Temperature range: 2 ~ 8 °C
• Voltage: 220 V / 50 Hz
• Input power: 250 W
• Power consumption: 2.5 kWh/24 h
• Refrigerant: R600a (CFC-free)
• Defrost: Auto
• Cooling method: Forced air
• Chambers: 6
• Ambient temperature: 10 ~ 32 °C
• Controller: Microprocessor
• Display: LED digital
• Interior material: Color-sprayed steel
• Exterior material: Color-sprayed steel
• Door type: Single glass door with safety lock
• Insulation: PURF
• Alarms: high/low temperature, power failure, sensor failure, door ajar, system failure (sound/light)
• Castors: Yes
• Lamp: LED
• Noise: 42 dB
• Climate class: N
• Electrical protection: Class 1 Type B
• External dimensions (D × W × H): 600 × 600 × 1920 mm
• Package dimensions (D × W × H): 730 × 730 × 2060 mm
• Net weight: 75 kg
• Gross weight: 85 kg
