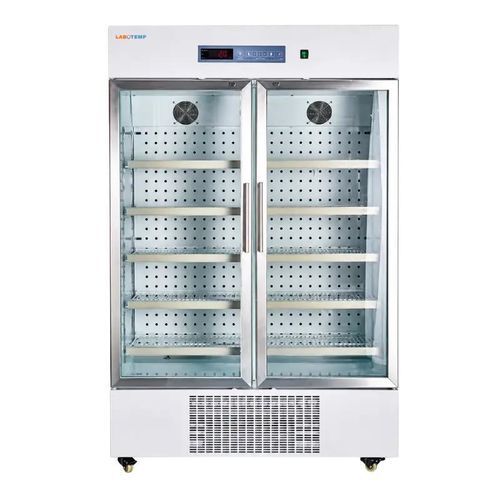

Healthcare facility refrigerator PHR-16

for pharmaciesfor vaccineshospital

Overview
Labotemp Pharmaceutical and Vaccine Refrigerator PHR-16 is a 560 L medical refrigeration unit designed for controlled cold storage of vaccines, pharmaceuticals, reagents and other temperature-sensitive medical products in hospitals, clinics, pharmacies and laboratories. The unit maintains a stable 2°C–8°C range with fan-assisted cooling and a heated glass door to reduce condensation and ensure product visibility.

Design and construction
Cold-rolled steel exterior with powder-coating and hygienic 304 stainless-steel interior for easy cleaning and long-term reliability. Fan-assisted refrigeration with a HUAYI compressor provides uniform airflow. Manual defrost simplifies maintenance and five adjustable dip plastic grids support flexible storage organization.

Key features

• Stable 2°C–8°C temperature control
• Fan-assisted cooling for uniform temperature distribution
• Manual defrost system
• 45 mm high-density insulation to minimize thermal loss
• Five adjustable dip plastic grids for configurable storage
• Heated glass door to limit condensation and maintain visibility
• Audible and visual alarms for abnormal conditions
• Safety protections: high/low temperature, sensor failure and power-failure alarms
• Construction: cold-rolled steel exterior and 304 stainless-steel interior

Applications

• Refrigerated storage of vaccines, pharmaceuticals, reagents and diagnostic kits
• Suitable for hospitals, pharmacies, clinical laboratories, blood banks, research institutes and healthcare facilities requiring a stable cold chain and organized sample storage

Specifications (table)
Capacity : 560L
Temperature : 2 ~ 8°C
Voltage : 220V 50Hz/60Hz
Rated Power : 490W
Power Consumption : 5.9 KWh/24h
Electrocution Protection Type : I
Climate Type : N
Net Weight : 131kg
Noise : 55dBA
Insulation Layer Thickness : 45mm
Dip Plastic Grid : 5
Product Size : 1200 × 650 × 1890mm
Inner Size : 1112 × 560 × 1230mm
Refrigeration System : Fan cooling
Defrost : Manual
Compressor : HUAYI
Package Size : 1260x765x2035mm
Gross Weight : 191kg

Technical specifications

• Capacity: 560 L
• Temperature range: 2 ~ 8 °C
• Voltage: 220V 50Hz/60Hz
• Rated power: 490 W
• Power consumption: 5.9 KWh/24h
• Electrical protection type: I
• Climate type: N
• Net weight: 131 kg
• Gross weight: 191 kg
• Noise level: 55 dBA
• Insulation thickness: 45 mm
• Shelves / dip plastic grids: 5 (adjustable)
• External size: 1200 × 650 × 1890 mm
• Internal size: 1112 × 560 × 1230 mm
• Package size: 1260 × 765 × 2035 mm
• Refrigeration system: Fan cooling
• Defrost: Manual
• Compressor brand: HUAYI
