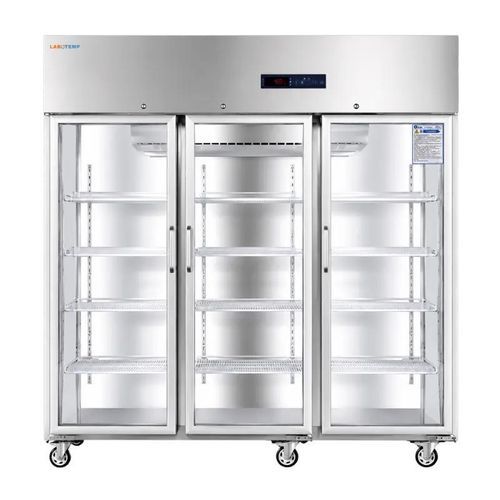

Pharmacy refrigerator PHR-13

for vaccineshospitalblood bank

Product Overview
Labotemp PHR-13 is a 1500 L pharmaceutical and vaccine refrigerator engineered for reliable storage of vaccines, pharmaceuticals, reagents and biological samples in hospitals, pharmacies, blood banks and research laboratories. The cabinet operates on a stable 2°C to 8°C range controlled by a microprocessor and NTC sensor, and integrates a high-efficiency Secop compressor with R134a (CFC-free) refrigerant. Interior and exterior are manufactured in 304 stainless steel for hygiene and corrosion resistance. Digital display, audible/visible alarms and optional data logging support regulated medical cold chain workflows.

Key Features

• 1500 L capacity suitable for hospital pharmacies, vaccine clinics and central storage
• Accurate 2°C to 8°C temperature range with microprocessor controller and NTC sensor
• Comprehensive alarm system: high/low temperature, power failure, thermostat fault, door ajar
• High-efficiency Secop compressor for continuous, reliable operation
• CFC-free refrigerant (R134a) for environmentally compliant operation
• 304 stainless steel interior and exterior for easy cleaning and long service life
• Digital display and optional USB/data logger for traceable temperature records
• Automatic defrost to reduce maintenance
• 8-hour power-failure backup alarm for critical monitoring during outages
• 12 adjustable shelves and heavy-duty caster wheels for flexible storage and mobility

Applications

• Storage of vaccines, temperature-sensitive pharmaceuticals, reagents, blood products and biological samples in hospitals, clinics, blood banks and diagnostic/research laboratories
• Use in GMP-regulated facilities and medical cold chain operations requiring continuous monitoring and alarmed protection

Technical Specifications

• Model: PHR-13
• Capacity: 1500 L
• Temperature Range: 2 ~ 8°C
• Power Supply: 220V 50Hz
• Power Consumption: 1065 W
• Sensor: NTC
• Controller: Microprocessor
• Refrigerant: R134a (CFC Free)
• Defrost: Auto
• Compressor Quantity: Secop / 1
• Display: Digital Display
• Audible & Visible Alarm: High/Low temperature, power failure, thermostat failure, door ajar
• Power Failure Backup System (Alarm): 8 h
• Internal Material: 304 Stainless Steel
• External Material: 304 Stainless Steel
• Shelves Quantity: 12 Shelves
• Sound Emission: 55 dB
• Internal Size (W × D × H): 1680 × 595 × 1312 mm
• External Size (W × D × H): 1800 × 775 × 1965 mm
• Shipping Size (W × D × H): 1940 × 880 × 2035 mm
• Net Weight: 245 kg
• Gross Weight: 280 kg
