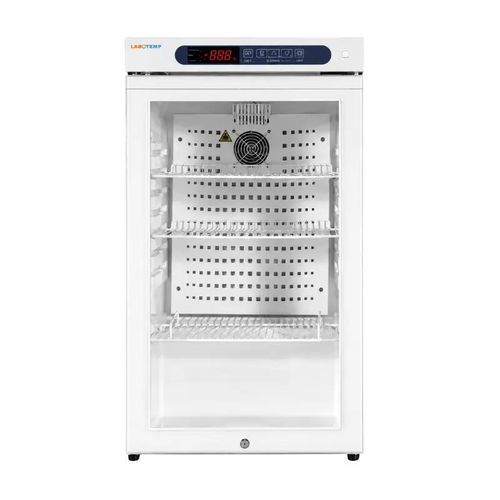

Hospital refrigerator PHR-21

for vaccinesfor sample storagefor pharmacies

Product overview
Labotemp Pharmaceutical and Vaccine Refrigerator PHR-21 is a purpose-built medical refrigerator for secure storage of vaccines, medicines, reagents and biological samples. Designed to operate stably at 2–8°C, the 100 L chamber uses microprocessor control, an NTC sensor and forced-air circulation to ensure uniform temperature distribution. Auto-defrost and adjustable shelving support reliable daily use in hospitals, clinics, pharmacies, blood collection centers and diagnostic or research laboratories.

Key benefits

• Stable 2–8°C storage for vaccines, pharmaceuticals and biological materials
• Advanced safety: audible and visual alarms, power-failure backup alarm and lockable door
• Energy-efficient and low-GWP: R600a refrigerant, insulated glass door and automatic defrost

Features

• R600a eco refrigerant
• Microprocessor-based controller for precise regulation
• NTC temperature sensor for continuous monitoring
• Forced-air circulation for uniform temperature across shelves
• Automatic defrost to reduce maintenance
• Double-layer toughened glass door for insulation and visibility
• Internal acrylic door panels to minimize temperature fluctuation during access
• Digital LED temperature display
• Lockable door design
• Password-protected control settings
• Three adjustable storage shelves
• Electro-galvanized powder-coated exterior
• Lockable universal casters

Applications

• Storage of vaccines, medicines, reagents and biological samples in hospitals, pharmacies and vaccination centers
• Diagnostic laboratories, blood collection points and research institutes
• Clinical testing, pharmaceutical QA, laboratory workflows and cold-chain management requiring continuous monitoring and alarm protection

Optional accessories

• USB port
• Data logger

Technical specifications

• Capacity: 100 L
• Temperature range: 2°C to 8°C
• Ambient temperature: RT 10°C to 32°C
• Power supply: AC 110/220V, 50/60Hz ±10%
• Power consumption: 80 W
• Door type: Glass door (double-layer toughened glass)
• Temperature sensor: NTC
• Temperature controller: Microprocessor controller
• Refrigerant: R600a (CFC-free)
• Defrost system: Automatic
• Compressor quantity: 1
• Display: Digital LED
• Audible & visual alarm: High/low temperature, door-ajar
• Power-failure backup alarm: 10 hours
• Internal material: HIPS
• External material: Electro-galvanized steel with antimicrobial powder coating
• Casters: Standard (lockable universal casters)
• Shelves quantity: 3
• Sound emission: 50 dB
• Internal dimensions (W × D × H): 385 × 356 × 737 mm
• External dimensions (W × D × H): 505 × 510 × 875 mm
• Net weight: 35 kg
• Gross weight: 38 kg
• Package size: 580 × 580 × 940 mm
