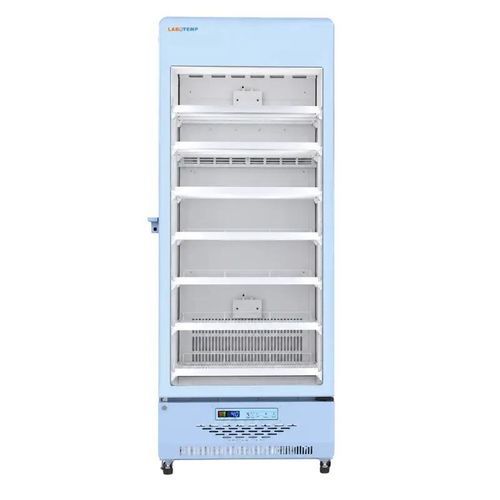

Vaccine refrigerator PHR-22

for pharmaciesfor laboratoryblood bank

Product Overview
Labotemp PHR-22 is a pharmaceutical and vaccine refrigerator with 515 L usable capacity, designed to maintain stable 2°C to 8°C conditions for vaccines, medicines, reagents and biological samples. The unit uses an electronic controller with NTC sensor, forced-air 3D circulation and eco-friendly R290 refrigerant to ensure uniform temperature distribution and energy-efficient operation. Built-in auto-defrost reduces maintenance and supports continuous cold-chain storage for hospitals, pharmacies, vaccination centers, blood banks and laboratories.

Design & Construction
The PHR-22 features a double-layer tempered glass outer door with Low-E coating and inert gas filling for improved insulation and visibility. Internal storage is organised with adjustable shelves to accommodate bottles, boxes and sample racks. Exterior is powder-coated cold-rolled steel; interior is corrosion-resistant powder-coated aluminum for easy cleaning. The unit provides USB data export, temperature recorder compatibility and a remote alarm interface for integration into facility monitoring systems.

Why Choose PHR-22

• Stable 2°C to 8°C storage: Electronic temperature control with forced-air circulation for consistent pharmaceutical storage.
• Energy-efficient and eco-friendly: R290 refrigerant combined with auto-defrost for reliable, low-maintenance use.
• Practical storage and monitoring: Adjustable shelving, tempered glass visibility and comprehensive alarm/data export options.

Features

• R290 refrigerant.
• Eight adjustable shelves for flexible interior organisation.
• Automatic defrost system to minimise frost build-up.
• Powder-coated cold-rolled steel exterior for durability.
• Corrosion-resistant powder-coated aluminum interior for hygiene and longevity.
• Comprehensive alarms: high/low temperature, power failure, thermostat fault, condenser fault, ambient temperature, door ajar and backup battery.
• Supports USB data export, temperature recorder and remote alarm interface; optional door lock.
• Low noise level ≈46 dB for quiet operation in clinical settings.
• Electronic temperature controller with NTC sensor for accurate monitoring.

Applications

• Suitable for hospitals, pharmacies, vaccination centres, blood banks, clinical/diagnostic laboratories, pharmaceutical manufacturers, research institutes and biotechnology facilities requiring continuous 2°C to 8°C storage with monitoring and alarms.

Standard Accessories

• 2 PCS Foot
• 4 PCS Castor
• 1 PC Glass Outer Door Lock
• 1 PC Test Hole (25 mm)
• Lamp
• USB Port
• Temperature Recorder
• Remote Alarm Port

Technical Specifications

• Capacity: 515 L
• Temperature Range: 2°C to 8°C
• Power Supply: 220–240 V, 50/60 Hz
• Power Consumption: 420 W
• Sensor: NTC
• Temperature Controller: Electronic
• Refrigerant: R290
• Defrost Mode: Auto Defrost
• Compressor Quantity: 1
• Shelf Quantity: 7
• Daily Power Consumption: 2.85 kWh/24 h
• Noise Level: 46 dB
• Display: Digital Tube
• Inside Material: Powder-coated Flat Aluminum Plate
• Outside Material: Powder-coated Cold-Rolled Steel Plate
• External Dimensions (W × D × H): 800 × 730 × 1970 mm
• Package Dimensions (W × D × H): 825 × 840 × 2090 mm
• Net Weight: 146 kg
• Gross Weight: 171 kg
