Pharmacy refrigerator PHR-11

for vaccineshospitallaboratory

Product Overview

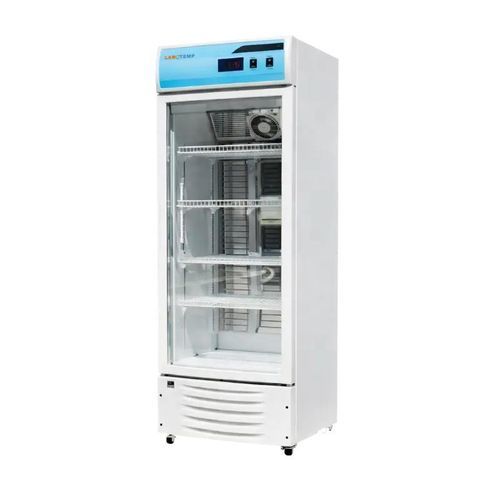

Labotemp 2°C–8°C Pharmaceutical Refrigerator PHR-11 is designed for reliable storage of vaccines, pharmaceuticals, reagents and other temperature-sensitive medical supplies in hospitals, pharmacies, diagnostic laboratories and research centers. The unit provides 260 L capacity with microprocessor temperature control, LED digital display (0.1°C resolution) and forced-air circulation to ensure uniform temperature distribution. It features a single glass door, adjustable multi-layer shelves, energy-efficient R600a refrigerant, integrated alarm system and caster mobility for clinical and lab environments.

Key Selling Points

• Reliable vaccine storage: stable 2°C–8°C range suitable for vaccines and sensitive pharmaceuticals
• Advanced safety monitoring: audible and visual alarms for high/low temperature, power failure, sensor fault, door ajar and system faults
• Energy-efficient cooling: eco-friendly R600a refrigerant with forced-air circulation for fast recovery and uniform temperature

Features

• Audio & visual alarm
• Precise microprocessor temperature control
• LED digital display with 0.1°C precision
• Fast temperature recovery after door opening
• Low-vibration cooling suitable for sensitive materials
• Adjustable multi-layer shelving for organized storage
• Durable color-sprayed steel interior and exterior
• LED interior lighting and secure door lock
• Quiet operation (42 dB) and caster mobility

Applications

• Controlled storage of temperature-sensitive pharmaceuticals, vaccines, insulin, reagents and clinical samples in hospitals, pharmacies, vaccination centers and diagnostic labs
• Supports GMP-compliant storage and cold-chain maintenance where uniform airflow, alarm protection and data monitoring are required

Optional Accessories

• Portable temperature recorder with USB interface
• Temperature record printer
• Remote wireless alarm
• UPS emergency power
• Solar power supply
• DC24V–AC220V inverter

Technical Specifications

• Temperature Range (°C): 2 ~ 8°C
• Capacity (L / Cu.Ft): 260 L
• Chamber: 5
• Outside Door / Type: Single Glass Door
• Refrigerant: R600a CFC Free
• Power Consumption: 2.5 K.W.H / 24H
• Input Power (W): 250 W
• Noise (dB): 42 dB
• Voltage / Frequency: 220V / 50Hz
• Ambient Temperature: 10 ~ 32°C
• Cooling Method: Forced Air Cooling System
• Defrost: Auto
• Temperature Controller: Microprocessor
• Display: LED Digital Display
• Inside Material: Color Sprayed Steel
• Outside Material: Color Sprayed Steel
• Insulation: PURF
• Alarm: High/Low Temperature, Power Failure, Sensor Failure, Door Ajar, System Failure Alarm
• Alarm Type: Sound / Light
• Castor: Yes
• Lamp: LED
• Climate Type: N
• Electric Shock Resistance: Class I Type B
• Exterior Size (D×W×H): 560×515×1790 mm
• Package Dimension (D×W×H): 660×630×1850 mm
• Net Weight: 67 kg
• Gross Weight: 73 kg
