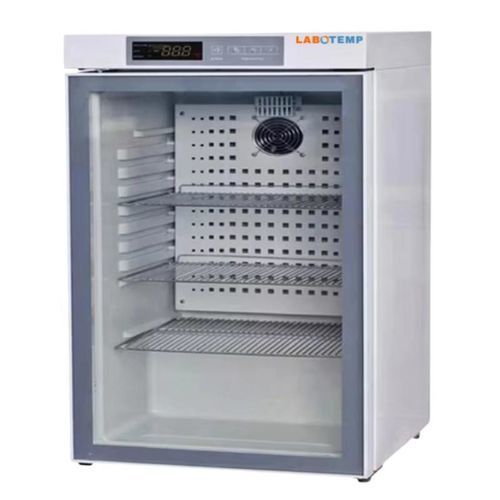

Pharmacy refrigerator PHR-02

for vaccinesfor hospitalslaboratory

Product overview
Labotemp PHR-02 is a 70 L pharmaceutical and vaccine refrigerator engineered to maintain precise and reliable +2°C to +8°C storage. Suited for hospitals, pharmacies and laboratories, it pairs a Secop compressor, fluorine-free refrigerant and a 304 stainless-steel interior for hygienic, energy-efficient preservation of vaccines, medicines and biological samples.

Key benefits

• Hygienic, durable interior — 304 stainless-steel liner resists corrosion and is easy to clean for medical environments.
• Stable temperature control — Secop compressor and microprocessor regulation maintain 2–8°C with 0.1°C adjustment steps.
• Safety and monitoring — audible and visual alarms alert on high/low temperature and door-ajar events to protect sensitive stock.
• Secure storage — integrated door lock with key for controlled access to samples and vaccines.

Features

• Form factor: Mini refrigerator, suitable for benchtop or compact storage areas.
• Temperature range: +2°C to +8°C, adjustable in 0.1°C increments.
• Cooling system: Air cooling with Secop compressor and Germany EBM condensing fan.
• Thermostat: Electronic control with digital temperature display.
• Control system: Advanced microprocessor control for precise stability.
• Alarm system: Audible and visual alerts for high/low temperature and door ajar.
• Door lock for secure sample storage.
• Interior: 304 stainless steel, hygienic and corrosion-resistant.
• Exterior: Galvanized sheet with durable spray coating.

Applications

• Designed for medical, pharmaceutical and laboratory use where reliable 2–8°C storage is required for vaccines, medicines and biological samples.

Technical specifications

• Model: PHR-02
• Capacity: 70 L (2.47 cu.ft.)
• Temperature range: 2–8°C
• Compressor: Secop compressor
• Voltage: 220V, 110V 50/60Hz
• Input power: 220 W
• Temperature adjust unit: 0.1°C
• Cooling type: Air cooling
• Thermostat: Electronic
• Display: Digital display
• Exterior size: 450 × 550 × 860 mm
• Inner size: 370 × 460 × 640 mm
• Net weight: 39 kg
• Exterior material: Galvanized sheet sprayed
• Inner material: 304 stainless steel
• Lock key: Yes
• Control system: Microprocessor control
• Ambient temperature (operation): 16–32°C
• Environmental humidity: 20–80%
• Alarm: Audible and visual alarm for high and low temperature, door ajar
• Gross weight: 53 kg
• Package size: 520 × 625 × 1025 mm
