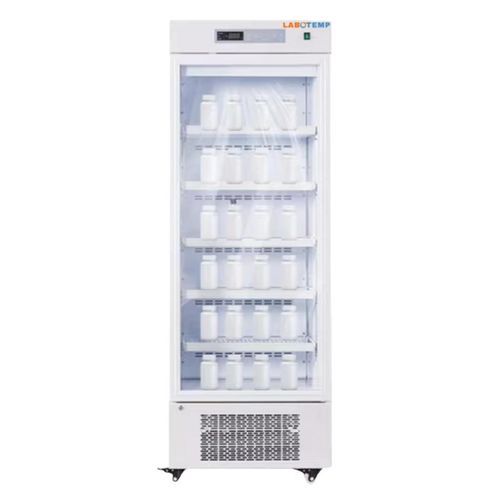

Pharmacy refrigerator PHR-03

for healthcare facilitiesfor vaccineshospital

Product overview
Labotemp PHR-03 is a 400 L pharmaceutical and vaccine refrigerator engineered for stable +2°C to +8°C storage. Designed for hospitals, laboratories, clinics and pharmacies, it delivers uniform air-cooling, digital monitoring and a hygienic 304 stainless-steel interior for reliable cold-chain handling.

Why choose Labotemp Pharmaceutical & Vaccine Refrigerator PHR-03?

• Precise temperature control
  Microprocessor control with electronic thermostat and digital display, adjustable to 0.1°C to maintain compliant vaccine storage.
• Hygienic stainless-steel chamber
  304 stainless-steel interior for easy cleaning and long-term corrosion resistance.
• Security and monitoring
  Lockable door plus audible and visual alarms for high/low temperature and door-ajar events.
• Reliable cooling performance
  Air-cooling system with Huayi compressor ensures consistent temperature distribution for sensitive products.

Features

• Microprocessor control
• Temperature range
  +2°C to +8°C (adjustable 0.1°C)
• Cooling system
  Air cooling, Huayi compressor
• Control
  Electronic thermostat with digital display
• Alarm
  Audible & visual for high/low temp and door ajar
• Door lock
  Yes
• Capacity
  400 L, suitable for vaccines, medicines and samples

Applications

• Safe storage of vaccines, pharmaceuticals and biological samples in hospitals, laboratories and pharmacies

Technical specifications

• Model: PHR-03
• Capacity: 400 / 14.12 (L / cu.ft.)
• Temperature range: 2–8°C, adjustable
• Compressor: Huayi
• Voltage: 220V 50Hz
• Input power: 430W
• Cooling type: Air cooling
• Thermostat: Electronic
• Display: Digital display
• Exterior size: 680 × 745 × 1870 mm
• Inner size: 560 × 610 × 1380 mm
• Packaging size: 590 × 670 × 1470 mm
• Net weight: 115 kg
• Gross weight: 155 kg
• Exterior material: Galvanized sheet painted
• Inner material: 304 stainless steel
• Lock key: Yes
• Control system: Microprocessor control
• Ambient temperature: 16–32°C
• Environmental humidity: 20–80%
• Alarm: Audible and visual alarm for high/low temperature and door ajar
