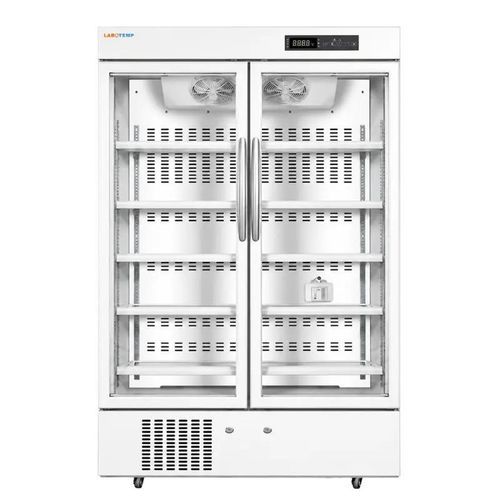

Pharmacy refrigerator PHR-14

for vaccinesfor hospitalsblood bank

Overview
Labotemp Pharmaceutical and Vaccine Refrigerator PHR-14 is a medical-grade refrigeration unit engineered for safe storage of vaccines, pharmaceutical products, laboratory samples and reagents. It offers a stable operating range of 2°C to 8°C and a usable capacity of 656 L, suitable for hospitals, pharmacies, blood banks, clinical laboratories and research facilities.

Key advantages
Energy-efficient CFC-free refrigeration, automatic defrost, antimicrobial electro-galvanized steel interior and exterior, and an alarm-protected monitoring system ensure product safety while reducing maintenance needs.

Features

• Stable temperature control (2°C–8°C) via microprocessor controller and NTC sensor
• Low noise operation (52 dB)
• Automatic defrost to minimize manual intervention
• Audible and visible alarms for high/low temperature, power failure, thermostat failure and door ajar
• 8-hour power-failure backup alarm support
• Electro-galvanized steel construction with antimicrobial powder coating (internal & external)
• 10 adjustable shelves for configurable storage
• Digital display for real-time temperature monitoring
• Smooth mobility casters for easy positioning
• Eco-friendly R290 (CFC-free) high-efficiency refrigerant

Applications

• Storage of vaccines, medicines, reagents, biological samples and diagnostic materials requiring 2°C–8°C
• Intended for hospitals, pharmacies, blood banks, clinical laboratories and research facilities
• Suitable for monitored pharmaceutical cold chain workflows with alarm-protected safety monitoring

Table - Key specifications
Model: PHR-14
Capacity: 656 L
Temperature Range: 2 ~ 8°C
Power Supply: 220V 50Hz
Power Consumption: 403 W
Sensor: NTC
Controller: Microprocessor
Refrigerant: R290 (CFC-free)
Defrost: Auto
Compressor Quantity: 1
Display: Digital Display
Audible & Visible Alarm: High/Low temperature, power failure, thermostat failure, door ajar
Power Failure Backup System (Alarm): 8 h
Internal / External Material: Electro-galvanized steel with antimicrobial powder coating
Test Hole (Qty / Diameter): 1 / 25 mm
Shelves Quantity: 10 Shelves
Sound Emission: 52 dB
Internal Size (W × D × H): 1100 × 454 × 1325 mm
External Size (W × D × H): 1220 × 630 × 1885 mm
Shipping Size (W × D × H): 1280 × 670 × 1950 mm
Net Weight: 166 kg
Gross Weight: 184 kg

Technical specifications

• Model: PHR-14
• Storage capacity: 656 L
• Operating temperature range: 2°C to 8°C
• Power supply: 220V 50Hz
• Power consumption: 403 W
• Temperature sensor: NTC
• Controller: Microprocessor
• Refrigerant: R290 (CFC-free)
• Defrost: Automatic
• Alarms: Audible & visible for high/low temperature, power failure, thermostat failure and door ajar
• Power-failure backup alarm: 8 hours
• Construction: Electro-galvanized steel with antimicrobial powder coating (internal & external)
• Shelves: 10 adjustable shelves
• Test hole: 1 x 25 mm
• Sound emission: 52 dB
• Internal dimensions (W×D×H): 1100 × 454 × 1325 mm
• External dimensions (W×D×H): 1220 × 630 × 1885 mm
• Shipping dimensions (W×D×H): 1280 × 670 × 1950 mm
• Net weight: 166 kg / Gross weight: 184 kg
