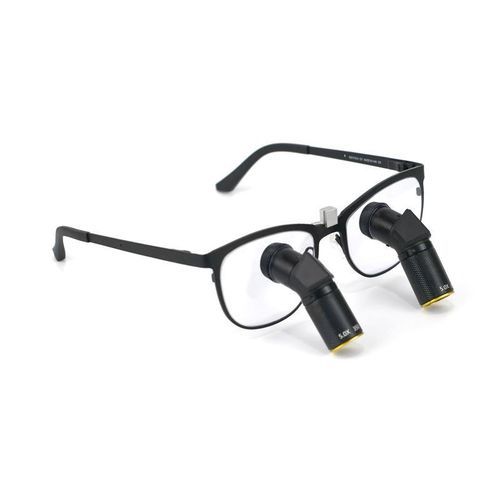

Glasses-type surgical loupe AENM-500X

PRODUCT FEATURES

• Adjustable working distance, adapts to seated or standing surgical positions.
• Fixed interpupillary distance that can be tailored to specifications.
• Suitable for: dentistry, general surgery, medical aesthetics (suture work), organ transplant and similar procedures.

PRODUCT INTRODUCTION
The Surgical Loupes AENM-500X is designed to provide 5.0X magnification and clear optics for medical and dental procedures. The adjustable working distance and lightweight construction help reduce neck and spine strain during prolonged use.

MODEL COMPARISON (table)
Model No: AENM-400X | AENM-500X | AENM-600X
Magnification: 4.0X | 5.0X | 6.0X
Working distance: 300-600mm (ADJUSTABLE) | 300-600mm (ADJUSTABLE) | 300-600mm (ADJUSTABLE)
Field of view: 80mm | 75mm | 75mm
Depth of field: 110mm | 70mm | 70mm
Weight with frame: 56g | 58g | 58g

HIGHLIGHTS

• Weight: 58g (AENM-500X)
• Magnification: 5.0X
• Lens material: A+ grade optical glass components
• Fixed interpupillary distance, customizable to specifications
• Improved depth perception and clear visual field for precise work
• Ergonomic design to reduce neck/spine strain; compatible with MF-JD2100 light

TECHNICAL SPECIFICATIONS

• Model: AENM-500X
• Magnification: 5.0X
• Working distance: 300-600mm (adjustable)
• Field of view: 75mm
• Depth of field: 70mm
• Weight with frame: 58g
• Lens material: A+ grade optical glass components
• Interpupillary distance: fixed and can be tailored to specifications
• Applications: dentistry, general surgery, medical aesthetics (suture), organ transplant and similar procedures
• Benefits: enhanced depth perception, clear optics, ergonomic design to reduce neck/spine strain
