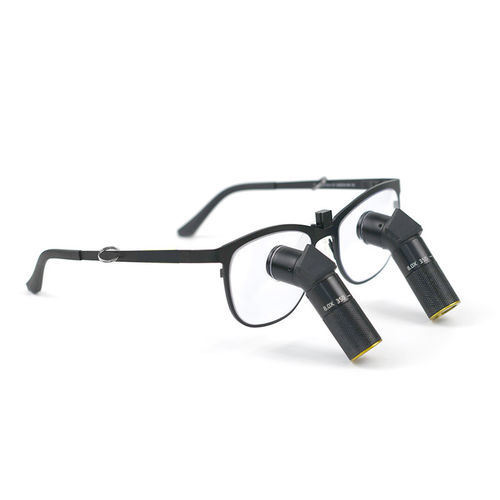

Glasses-type surgical loupe AENM-800X
Add to favorites
Compare this product
Characteristics
- Type
- glasses-type
- Zoom
8 unit
Description
PRODUCT OVERVIEW
KEY FEATURES
MODEL COMPARISON
TECHNICAL SPECIFICATIONS
APPLICATIONS
- AENM-800X Micare surgical and dental loupes offering 8.0X magnification, adjustable working distance (300–600 mm) and fixed interpupillary distance tailored to user specifications.
KEY FEATURES
- Adjustable working distance adapts to sitting or standing clinical positions (300–600 mm).
- Fixed interpupillary distance configurable to customer specifications for consistent binocular alignment.
- A+ grade optical glass lenses for improved clarity and accurate visualization.
- Optimized depth perception with a 50 mm field of view and 40 mm depth of field at 8.0X.
- Lightweight design: 65 g (with frame) to support ergonomic posture and reduce neck strain.
- Compatible with MF-JD2100 illumination for integrated surgical lighting.
MODEL COMPARISON
- AENM-400X — Magnification: 4.0X; Working distance: 300–600 mm (adjustable); Field of view: 80 mm; Depth of field: 110 mm; Weight with frame: 56 g.
- AENM-500X — Magnification: 5.0X; Working distance: 300–600 mm (adjustable); Field of view: 75 mm; Depth of field: 70 mm; Weight with frame: 58 g.
- AENM-600X — Magnification: 6.0X; Working distance: 300–600 mm (adjustable); Field of view: 75 mm; Depth of field: 70 mm; Weight with frame: 58 g.
- AENM-800X — Magnification: 8.0X; Working distance: 300–600 mm (adjustable); Field of view: 50 mm; Depth of field: 40 mm; Weight with frame: 65 g.
- AENM-850X — Magnification: 8.5X; Working distance: 300–600 mm (adjustable); Field of view: 50 mm; Depth of field: 40 mm; Weight with frame: 65 g.
TECHNICAL SPECIFICATIONS
- Model: AENM-800X
- Magnification: 8.0X
- Working distance: 300–600 mm (adjustable)
- Field of view: 50 mm
- Depth of field: 40 mm
- Weight (with frame): 65 g
- Lens material: A+ grade optical glass
- Interpupillary distance: Fixed, tailored to customer specifications
- Compatibility: Designed to match MF-JD2100 light
APPLICATIONS
- Indicated for stomatology (dental), general and specialized surgery, medical aesthetic suturing, organ transplant procedures and similar microsurgical tasks.
- Ergonomic optical configuration supports a neutral head and neck posture during prolonged procedures.
