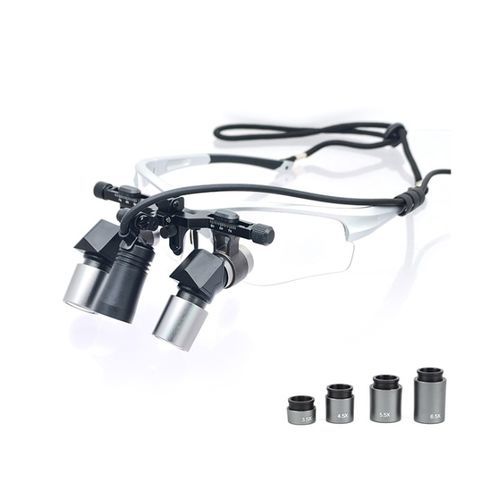

Glasses-type surgical loupe MD-JD2100

with headlampErgo

Product overview
AENS Ergo surgical loupes MD-JD2100 designed for dental, veterinary and microsurgery applications. Integrated clip-on 10W MD-JD2100 LED headlight delivers focused illumination while high-quality optical prism lenses provide clear, high-resolution imaging.

Technical specifications

• Model: AENS MD-JD2100
• Magnifications: 3.5X, 4.5X, 5.5X, 6.5X
• Field of view: 70–90 mm (3.5X), 60–80 mm (4.5X), 50–70 mm (5.5X/6.5X)
• Depth of field: 150 mm (3.5X), 100 mm (4.5X), 90 mm (5.5X), 80 mm (6.5X)
• Working distances: 360–460 mm, 440–540 mm, 500–600 mm
• Headlamp power: MD-JD2100 10W LED
• Light intensity: up to 100,000 Lux
• Color temperature: 5000±500K (optionally 5500K)
• Bulb life: 50,000 hrs
• Lamp head weight: 11 g
• Adapter: 100–240V AC 50/60Hz

Magnifying lenses

• High-quality optical prism lenses for sharp imaging and contrast.
• Magnetic interchangeable magnification lenses (modular system) to change magnification without replacing the frame.
• Adjustable interpupillary distance and available working-distance options to suit individual clinicians.
• Flexible purchase: order only the lenses required and upgrade later.

Headlamp features

• High-intensity LED up to 100,000 Lux with selectable brightness levels.
• Compact 11 g lamp head minimizes balance impact on the loupe frame.
• Color temperature around 5000K–5500K for neutral daylight rendering of tissues.
• Universal adapter 100–240V AC, suitable for clinical environments.

Applications & ordering

• Suitable for dental surgery, veterinary surgery, microsurgery and other precision medical procedures.
• Choose magnification and working-distance combination according to clinical needs.
• Modular system enables incremental upgrades (additional lenses, alternate headlight options).
• Contact supplier for clinical accessories, mounting options and warranty details.
