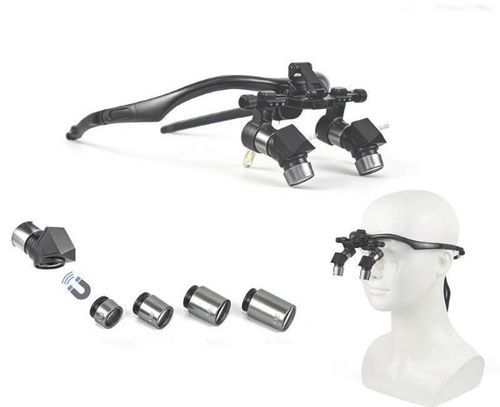

Surgical loupe without frames AEFF-3565

with headlampErgo

PRODUCT FEATURES

• 4-in-1 corner zoom magnifier with easily interchangeable lenses for quick magnification changes.
• Switch magnification without lowering the head or removing the loupes.
• A+ grade aspherical objective lenses providing ultra-clear vision, wide field of view, minimal edge distortion and deep depth of field.
• Suitable for dentistry, surgery, medical aesthetics (suture work), organ transplant and other clinical procedures.
• Tube material: metal.
• Lens material: A+ grade optical glass (aspherical objective).
• Interpupillary distance adjustment method: asynchronous adjustment.
• Compatible with fixed headlights and custom prescription lenses.

PRODUCT INTRODUCTION
Surgical magnification loupes offering four angled, variable magnification options (3.5X, 4.5X, 5.5X, 6.5X) with easily interchangeable corner lenses designed for clinical precision and comfortable prolonged use.

Magnification table
Magnification — Working distance — Field of view — Depth of field — Weight — Interpupillary distance adjustment range
3.5X — 360–600 mm — 70–90 mm — 150 mm — 99 g — 54–72 mm
4.5X — 360–600 mm — 60–80 mm — 100 mm — 102 g — 54–72 mm
5.5X — 360–600 mm — 50–70 mm — 90 mm — 106 g — 54–72 mm
6.5X — 360–600 mm — 50–70 mm — 80 mm — 108 g — 54–72 mm

Additional product notes

• Angled variable-magnification configuration enables quick switching among four magnification levels via a corner-change mechanism.
• Designed for a wide working distance range to accommodate various clinical postures and procedures.

Technical specifications

• Model: Ergo dental loupes (4-in-1 corner magnification)
• Magnification options: 3.5X, 4.5X, 5.5X, 6.5X
• Working distance: 360–600 mm (all magnifications)
• Field of view: 70–90 mm (3.5X); 60–80 mm (4.5X); 50–70 mm (5.5X and 6.5X)
• Depth of field: 150 mm (3.5X); 100 mm (4.5X); 90 mm (5.5X); 80 mm (6.5X)
• Weight: 99 g (3.5X); 102 g (4.5X); 106 g (5.5X); 108 g (6.5X)
• Interpupillary distance (IPD) adjustment range: 54–72 mm
• Tube material: Metal
• Lens material: A+ grade optical glass (aspherical objective)
• Interpupillary adjustment: Asynchronous
• Compatibility: Fixed headlights and custom prescription lenses supported
