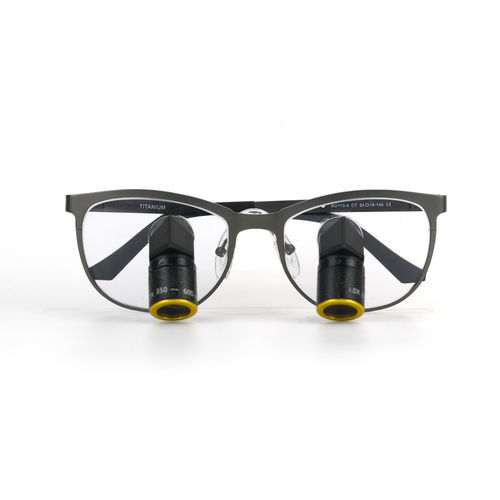

Glasses-type surgical loupe AENM-300X

PRODUCT FEATURES

• Surgical magnification loupe AENM-300X.
• Adjustable working distance 350-600 mm, adapts to seated or standing surgical positions.
• Fixed interpupillary distance tailored to customer specifications.
• Suitable for dentistry, surgery, medical aesthetics suturing, organ transplant and similar procedures.

PRODUCT INTRODUCTION

Technical table
Model No: AENM-300X | AENM-400X | AENM-500X | AENM-600X | AENM-800X | AENM-850X
Magnification: 3.0X | 4.0X | 5.0X | 6.0X | 8.0X | 8.5X
Working Distance: 350-600 mm (ADJUSTABLE) | 350-600 mm (ADJUSTABLE) | 350-600 mm (ADJUSTABLE) | 350-600 mm (ADJUSTABLE) | 350-600 mm (Adjustable) | 350-600 mm (Adjustable)
Field of view: 80 mm | 80 mm | 75 mm | 75 mm | 50 mm | 50 mm
Depth of field: 110 mm | 110 mm | 70 mm | 70 mm | 40 mm | 40 mm
Weight with frame: 56 g | 56 g | 58 g | 58 g | 65 g | 65 g

Additional product details

• Weight: 56 g.
• Magnification: 3.0X.
• Lens material: A+ grade optical glass components.
• Fixed interpupillary distance tailored to customer specifications.
• Enhanced depth perception and clear optical definition for precision work.
• Designed to provide ergonomic support for neck and spine; compatible with MF-JD2100 light.

Technical specifications

• Model: AENM-300X
• Magnification: 3.0X
• Working distance: 350-600 mm (adjustable)
• Field of view: 80 mm
• Depth of field: 110 mm
• Weight with frame: 56 g
• Lens material: A+ grade optical glass
• Interpupillary distance: fixed and tailored to customer specifications
• Applications: dentistry, surgery, medical aesthetic suturing, organ transplant and similar procedures
• Benefits: improved depth perception, clear optical definition, ergonomic support for neck and spine
