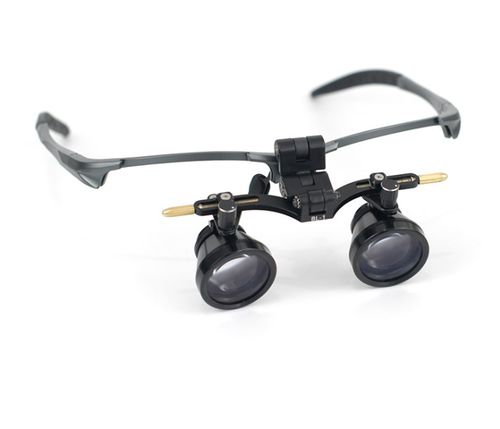

Glasses-type surgical loupe AGFM-2530

PRODUCT FEATURES

• Adjustable Working Distance: 350–550 mm
• Adjustable Interpupillary Distance: 47–74 mm
• Infinitely adjustable nose pad
• Three-joint hinge positioning system for precise tube alignment

PRODUCT INTRODUCTION
Binocular surgical loupes with 2.5x magnification, adjustable focal length and interpupillary distance, designed for dentistry, general and specialty surgery, medical-aesthetic suturing and transplant procedures. The loupe provides a long working distance, a clear and wide field of view, lightweight assembly and tool-free adjustments. The series is available in multiple magnifications and working distances and can be fitted with prescription corrective lenses for myopia, astigmatism and presbyopia.

ADJUSTMENT INSTRUCTIONS

• Interpupillary distance: rotate the adjustment knobs on both sides of the frame to align the optical tubes with the centers of your pupils.
• Tube angle: use the focusing nut above the tube to fine-tune the tube angle until both eyes form a single merged image, then tighten the tube locking knob.
• Lock positions: after focusing, tighten all locking knobs to secure the settings.

APPLICATIONS

• Suitable for dentistry, surgical procedures, medical-aesthetic suturing, organ transplantation and various diagnostic and operative interventions requiring magnification and a long working distance.
• Designed to assist detailed examinations and precise manual tasks by expanding the operative field of view.

TECHNICAL TABLE
Magnification: 2.5X
Working Distance: 350–550 mm (adjustable)
Field of View: 38–78 mm
Interpupillary Distance: 47–74 mm
Weight with frame: 79 g

TECHNICAL SPECIFICATIONS

• Magnification: 2.5X
• Working distance: 350–550 mm (adjustable)
• Field of view: 38–78 mm
• Interpupillary distance: 47–74 mm
• Infinitely adjustable nose pad
• Three-joint hinge positioning system
• Weight with frame: 79 g
• Applications: dentistry, surgery, medical aesthetics, organ transplant, diagnostic and surgical procedures
• Compatible with prescription lenses for myopia, astigmatism and presbyopia
