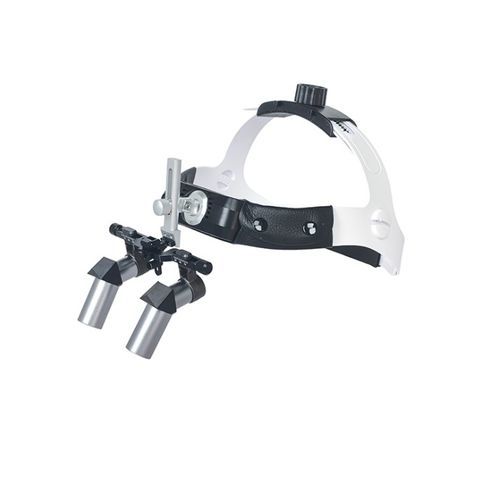

Headband-type surgical loupe JEHF-650X

Ergowith headlampbinocular

PRODUCT FEATURES

• Ergonomic headband surgical loupes designed for dental and microsurgical procedures
• Adjustable interpupillary distance (PD) 50-70 mm to suit sitting or standing postures
• Head-mounted binocular magnifier for hands-free use
• Compatible with various clip-on headlights for integrated illumination
• Applications: dentistry, surgery, medical aesthetics (suture), organ transplant and other precision procedures

PRODUCT INTRODUCTION
The JEHF-650X surgical loupes feature an ergonomic headband and metal lens housings with A+ grade optical glass components. At 6.5X magnification they provide improved depth perception and image clarity for fine dental and surgical tasks. Both interpupillary distance and working distance are adjustable to accommodate different users and clinical postures. The unit can be combined with clip-on headlights for targeted illumination.

MODELS & KEY SPECIFICATIONS

• JEHF-350X — Magnification: 3.5X; Working distance: 280–600 mm; Field of view: 70–90 mm; Depth of field: 100 mm; Adjustable PD: 50–70 mm
• JEHF-450X — Magnification: 4.5X; Working distance: 280–600 mm; Field of view: 50–80 mm; Depth of field: 100 mm; Adjustable PD: 50–70 mm
• JEHF-550X — Magnification: 5.5X; Working distance: 280–600 mm; Field of view: 50–75 mm; Depth of field: 90 mm; Adjustable PD: 50–70 mm
• JEHF-650X — Magnification: 6.5X; Working distance: 280–600 mm; Field of view: 45–70 mm; Depth of field: 80 mm; Adjustable PD: 50–70 mm

ADDITIONAL DETAILS

• Metal lens housings with textured finish
• Available magnifications: 3.5X / 4.5X / 5.5X / 6.5X
• Enhanced depth perception and optical clarity for precision work
• Adjustable interpupillary distance and working distance for user customization
• Lens material: A+ grade optical glass components
• Compatibility: compatible with various clip-on headlights

TECHNICAL SPECIFICATIONS

• Model: JEHF-650X
• Magnification: 6.5X (also available: 3.5X, 4.5X, 5.5X)
• Working distance: 280–600 mm
• Field of view (JEHF-650X): 45–70 mm
• Depth of field (JEHF-650X): 80 mm
• Adjustable interpupillary distance: 50–70 mm
• Lens material: A+ grade optical glass
• Lens style: metal lens housings
• Compatibility: combination with various clip-on headlights
• Applications: dentistry, surgery, medical aesthetics (suture work), organ transplant and other precision medical procedures
