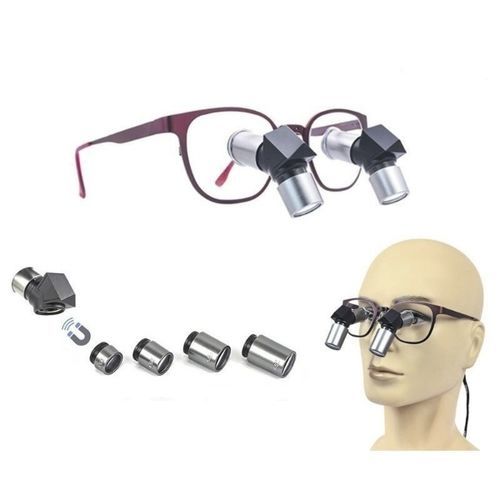

Glasses-type surgical loupe AENF-3565

TTLErgo

PRODUCT FEATURES

• 4-in-1 TTL Ergo surgical loupes with TTL magnetic attachment.
• Model: AENF-3565, Brand: Micare.
• Selectable magnifications: 3.5X, 4.5X, 5.5X, 6.5X.
• A+ grade aspherical objective lenses for clear imaging, wide field of view, distortion-free edges and deep depth of field.
• Recommended for dentistry, general surgery, medical aesthetics (suturing), organ transplant and other precision medical procedures.

PRODUCT INTRODUCTION
Magnification | 3.5X | 4.5X | 5.5X | 6.5X
Working distance | 360-600 mm | 360-600 mm | 360-600 mm | 360-600 mm
Field of view | 70-90 mm | 60-80 mm | 50-70 mm | 50-70 mm
Depth of field | 150 mm | 100 mm | 90 mm | 80 mm
Weight | 68 g | 72 g | 76.5 g | 77.5 g
Interpupillary distance adjustment range | 54-72 mm | 54-72 mm | 54-72 mm | 54-72 mm

ADDITIONAL PRODUCT DETAILS

• Magnification options: 3.5X, 4.5X, 5.5X, 6.5X.
• Tube material: Metal.
• Lens material: A+ grade optical glass components.
• Frame color options: Grey, Red, Blue, Black.
• Compatibility: Compatible with fixed headlights and custom refractive lenses; TTL magnetic attachment.

FAQ HIGHLIGHTS (product-relevant)

• Main application areas: dental/stomatology, general surgery, medical aesthetics (suturing), organ transplant procedures.
• Quality control: pre-production sample approval and final inspection before shipment.

TECHNICAL SPECIFICATIONS

• Model: AENF-3565
• Brand: Micare
• Magnification: 3.5X / 4.5X / 5.5X / 6.5X (selectable)
• Working distance: 360-600 mm (all magnifications)
• Field of view: 70-90 mm (3.5X); 60-80 mm (4.5X); 50-70 mm (5.5X and 6.5X)
• Depth of field: 150 mm (3.5X); 100 mm (4.5X); 90 mm (5.5X); 80 mm (6.5X)
• Weight: 68 g (3.5X); 72 g (4.5X); 76.5 g (5.5X); 77.5 g (6.5X)
• Interpupillary distance adjustment range: 54-72 mm
• Objective lens design: A+ grade aspherical objective lens (clear image, distortion-free edges)
• Tube material: Metal
• Lens components: A+ grade optical glass
• Frame color options: Grey, Red, Blue, Black
• Attachment: TTL magnetic attachment; compatible with fixed headlights and custom refractive lenses
• Recommended uses: dentistry, surgery, medical aesthetics, organ transplant and similar precision procedures
