Glasses-type surgical loupe AEFM
with flip-up systemErgo

Glasses-type surgical loupe - AEFM - Nanchang Micare Medical Equipment - with flip-up system / Ergo
Glasses-type surgical loupe - AEFM - Nanchang Micare Medical Equipment - with flip-up system / Ergo
Glasses-type surgical loupe - AEFM - Nanchang Micare Medical Equipment - with flip-up system / Ergo - image - 2
Glasses-type surgical loupe - AEFM - Nanchang Micare Medical Equipment - with flip-up system / Ergo - image - 3
Glasses-type surgical loupe - AEFM - Nanchang Micare Medical Equipment - with flip-up system / Ergo - image - 4
Glasses-type surgical loupe - AEFM - Nanchang Micare Medical Equipment - with flip-up system / Ergo - image - 5
Glasses-type surgical loupe - AEFM - Nanchang Micare Medical Equipment - with flip-up system / Ergo - image - 6
Add to favorites
Compare this product
Go to the Nanchang Micare Medical Equipment website for more information

Characteristics

Type
glasses-type
Options
with flip-up system, Ergo
Zoom

Max.: 6.5 unit

Min.: 3.5 unit

Description

PRODUCT OVERVIEW

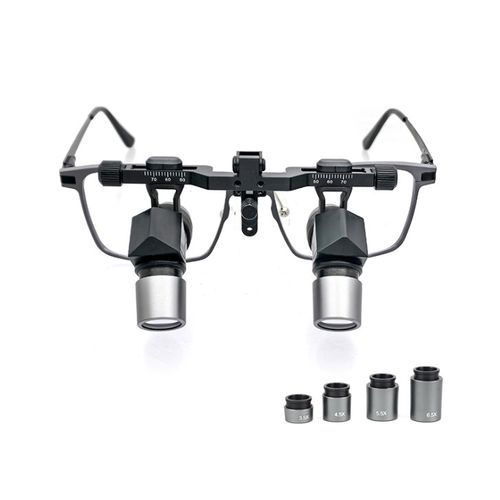

  • 4-in-1 angled flip-up surgical and dental loupes with magnetic interchangeable metal lenses.
  • Model: AEFM. Available magnifications: 3.5×, 4.5×, 5.5×, 6.5×.


KEY FEATURES
  • Magnetic snap-on lenses allow rapid magnification changes without tools.
  • Flip-up mechanism enables immediate transition between magnified and normal vision.
  • Asynchronous interpupillary distance (IPD) adjustment range 50–70 mm for precise alignment and multi-user setups.
  • Working distance adjustable within 360–600 mm to suit various procedures.


OPTICAL SPECIFICATIONS
  • Magnification: 3.5× | 4.5× | 5.5× | 6.5×
  • Working distance: 360–600 mm (all magnifications)
  • Field of view: 70–90 mm (3.5×), 60–80 mm (4.5×), 50–70 mm (5.5×), 50–70 mm (6.5×)
  • Depth of field: 150 mm (3.5×), 100 mm (4.5×), 90 mm (5.5×), 80 mm (6.5×)
  • Interpupillary distance adjustment range: 50–70 mm


ADDITIONAL FEATURES
  • Magnetic interchangeable metal lens system for modular upgrades and field flexibility.
  • Flip-up design supports fast procedural workflow and quick visual checks.
  • Modular purchase model: acquire only required lenses and upgrade later without replacing the frame.
  • Suitable for clinic and operating-room environments with multiple users.
  • IPD adjustment method: asynchronous adjustment.


TECHNICAL SPECIFICATIONS
  • Model / Series: AEFM
  • Lens material: metal
  • Lens system: magnetic interchangeable lenses
  • Design: angled flip-up ergonomic surgical/dental loupes
  • Magnification options: 3.5×, 4.5×, 5.5×, 6.5×
  • Working distance: 360–600 mm
  • Field of view and depth of field: see optical specifications
  • Interpupillary distance adjustment range: 50–70 mm
