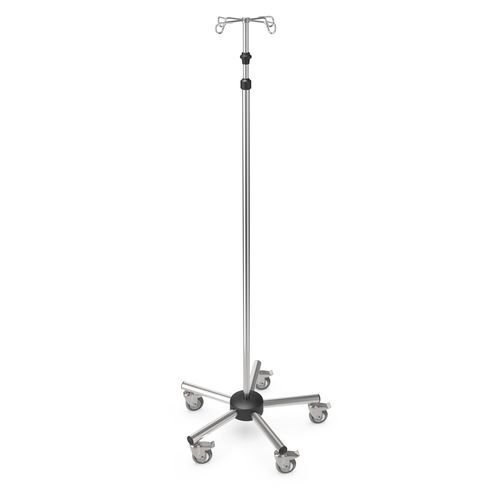

IV pole on casters I-PRE012

4-hookstainless steelheight-adjustable

Information
Provita IV-rods and stands are used in medical practices as well as in intensive and general care. To meet the demands of hospitals and routine care, Provita provides tailored drip-stand solutions for each application area, supported by an extensive accessory program.

Advantages

• Secure suspension of infusion bottles and bags for effective infusion therapy
• Mobile and flexible use with castors and adjustable height
• High durability through stainless steel construction and engineered plastic components

Technology

• All plastic parts are lightfast
• Stainless steel tubes according to DIN EN 10217-7
• Material ultrasonic and eddy current tested (according to EN 10246-9/3)
• Integrated pull-out limiter prevents separation of adjustable tubes
• Safety bottle cross according to DIN ISO 15375
• Welded stainless steel castor pins reduce rust risk and improve mechanical and hygienic conditions

Economy

• Compact packaging enables lower shipping costs

Safety

• Base legs sealed with plastic plugs to eliminate injury risk
• Built-in safety distance reduces pinch risk when retracting and extending the IV pole
• Cylindrical, polished base legs reduce surfaces where dirt and germs can settle
• Rounded bottle hooks prevent injury
• Hook geometry prevents infusion bottles from falling out

Application

• Outer tube offers space to attach devices at an ergonomic operating height

Technical specifications

• Field of application: Intensive Care
• Material: Stainless steel / Plastic
• Colour of plastic parts: Black
• Number of hooks: 4
• Arrangement of the hooks: 90° to each other
• Type of height adjustment: One-hand height adjustment
• Maximum length/height: 2,180 mm
• Minimum length/height: 1,465 mm
• Inner tube diameter: Ø 18 mm
• Outer tube diameter: Ø 25 mm
• Length of outer tube: 1,200 mm
• Base leg profile: Ø 33.7 mm
• Base weight: Weighted
• Base centre piece: Glass-fiber reinforced polyamide base
• Base diameter: Ø 580 mm
• Castors: Apparatus castors
• Total load capacity (kg): 13
• Load capacity per system (kg): 8
• Load capacity per hook (kg): 2
