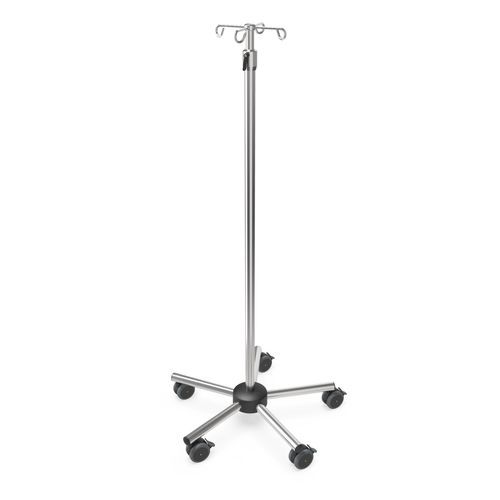

IV pole on casters I-PRE0034-hookstainless steelheight-adjustable
Add to favorites
Compare this product
Characteristics
- Configuration
- on casters
- Number of hooks
- 4-hook
- Other characteristics
- intensive care, height-adjustable, stainless steel
Description
Product highlights
Advantages
Technology
Safety
Application
Packaging dimensions
Technical specifications
- Softdrop system for controlled lowering of the inner tube
Advantages
- Secure suspension of infusion bottles and bags for effective infusion care
- Mobile design with flexible application possibilities at bedside and in ICU
- Durable construction using corrosion-resistant materials
Technology
- UV-resistant plastic components
- Stainless steel tubes manufactured to DIN EN 10217-7
- Ultrasonic and eddy-current tested material (EN 10246-9/3)
- Integrated pull-out limiter prevents separation of adjustable tubes
- Bottle cross according to DIN ISO 15375
- Welded stainless steel castor pins to reduce corrosion risk and improve hygiene
- Reinforced bottle holder supports hanging of 5-l rinsing solution containers
- Base made of glass-fibre reinforced plastic for increased corrosion resistance
Safety
- Base legs sealed with plastic plugs to eliminate sharp edges
- Built-in safety distance reduces pinch risk when extending/retracting the pole
- Cylindrical, polished base legs minimise surfaces for dirt accumulation
- Softdrop system dampens and controls inner tube descent
- Rounded bottle hooks reduce injury risk
- Hook geometry prevents infusion bottles from slipping out
Application
- Outer tube provides space to attach devices at an ergonomic operating height
Packaging dimensions
- Packaging unit: Unit
- Width Box1: 0,21 m
- Height Box1: 0,13 m
- Length Box1: 1,47 m
- Weight Box1: 12,50 kg
Technical specifications
- Field of application: Intensive Care
- Material: Stainless steel / Plastic
- Colour of plastic parts: Black
- Number of hooks: 4
- Arrangement of the hooks: 90° to each other
- Type of height adjustment: Stainless steel screw height adjustment
- Maximum length/height: 2.260 mm
- Minimum length/height: 1.430 mm
- Inner tube diameter: Ø 25 mm
- Outer tube diameter: Ø 33,7 mm
- Length of outer tube: 1.200 mm
- Base leg profile: Ø 33,7 mm
- Base weight: Weighted
- Base centre piece: Glass-fibre reinforced polyamide base
- Base diameter: Ø 655 mm
- Castors: Twin castors
- Castor diameter: Ø 75 mm
- Number of castors: 5 with brakes and electrical conductivity
- Total load capacity (kg): 35
- Load capacity per system (kg): 20
- Load capacity per hook (kg): 5
