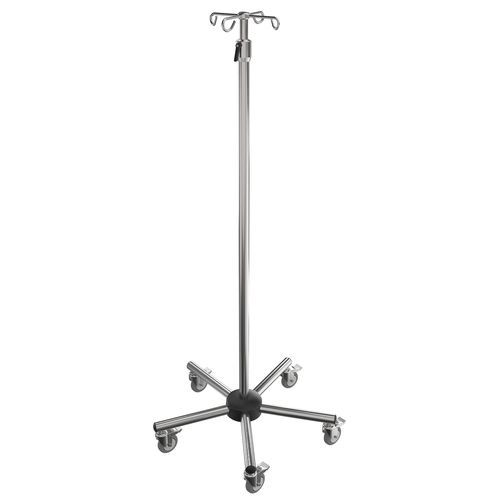

IV pole on casters I-PRE013

4-hookstainless steelheight-adjustable

Overview
Provita IV-rods and stands are used in hospitals, intensive care units and medical practices. The Premium Care IV stand is designed for secure hanging of infusion bottles and bags and for flexible mobile use in daily clinical care. Provita offers a wide accessory range to adapt the stand to various clinical applications.

Advantages

• Reliable infusion handling by secure suspension of bottles and bags
• Mobile, flexible use for ward and bedside applications
• High durability through use of quality stainless steel and engineered plastics

Technology

• All plastic parts are lightfast
• Stainless steel tubes manufactured to DIN EN 10217-7
• Material inspected by ultrasonic and eddy current testing (per EN 10246-9/3)
• Integrated pull-out limiter prevents separation of adjustable tubes
• Bottle cross compliant with DIN ISO 15375
• Reinforced bottle holder permits hanging of 5-litre rinsing solutions
• Base made of glass-fibre reinforced plastic for increased corrosion resistance

Economy

• Compact packaging reduces shipping costs

Safety

• Base legs sealed with plastic plugs to avoid injury
• Built-in safety distance reduces pinch risk when extending/retracting the pole
• Polished cylindrical base legs minimise surfaces for dirt and germs
• Softdrop system dampens and controls lowering of the inner tube
• Rounded bottle hooks eliminate sharp edges and reduce injury risk
• Hook geometry prevents infusion bottles from slipping out

Application

• Outer tube provides sufficient space to mount devices at an ergonomic operating height

Product properties
Field of application: Intensive Care
Material: Stainless steel / Plastic
Colour of plastic parts: Black
Number of hooks: 4
Arrangement of the hooks: 90° to each other
Type of height adjustment: Stainless steel screw height adjustment
Maximum length/height: 2,260 mm
Minimum length/height: 1,430 mm
Inner tube diameter: Ø 25 mm
Outer tube diameter: Ø 33.7 mm
Length of outer tube: 1,200 mm
Base leg profile: Ø 33.7 mm
Base weight: Weighted
Base centre piece: Glass-fibre reinforced polyamide base
Base diameter: Ø 655 mm
Castors: Apparatus castors
Castor diameter: Ø 75 mm
Number of castors: 5 with brakes and electrical conductivity
Total load capacity (kg): 35
Load capacity per system (kg): 20
Load capacity per hook (kg): 5

Technical specifications

• Field of application: Intensive Care
• Material: Stainless steel / Plastic
• Colour of plastic parts: Black
• Number of hooks: 4 (arranged 90° to each other)
• Height adjustment: Stainless steel screw height adjustment; Softdrop system for controlled lowering
• Height range: 1,430 mm – 2,260 mm
• Inner tube Ø: 25 mm; Outer tube Ø: 33.7 mm; Length outer tube: 1,200 mm
• Base: Glass-fibre reinforced polyamide centre piece; base diameter Ø 655 mm; base legs Ø 33.7 mm; weighted base
• Castors: Apparatus castors Ø 75 mm, 5 castors with brakes and electrical conductivity
• Load capacities: Total 35 kg; per system 20 kg; per hook 5 kg
