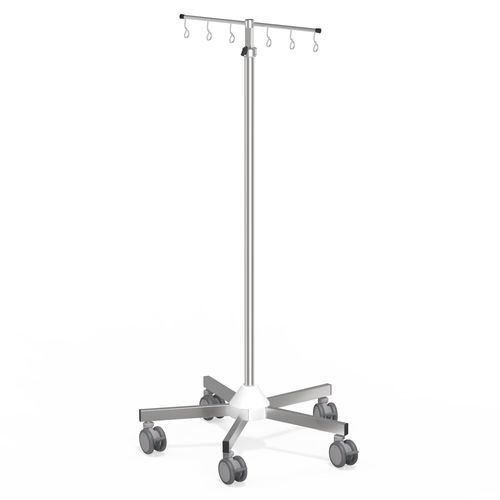

IV pole on casters I-P02226

6-hookstainless steelheight-adjustable

Information
Provita IV rods and stands are used in clinics, intensive care and general wards. The ISP|100 Unit is designed to provide a versatile drip pole solution for varied clinical settings and is compatible with a comprehensive accessory program.

Advantages

• Secure suspension of infusion bottles and bags for reliable infusion management
• Mobile design with flexible use options across care settings

Technology

• All plastic components are lightfast
• Stainless steel tubes manufactured according to DIN EN 10217-7
• Materials ultrasonic- and eddy-current tested (EN 10246-9/3)
• Integrated pull-out limiter prevents separation of adjustable tubes
• Safety bottle cross compliant with DIN ISO 15375
• Sealing cap prevents ingress of liquids into the IV pole

Safety

• Base legs sealed with plastic plugs to eliminate risk of injury
• Built-in safety distance reduces pinch risk when extending/retracting the pole
• Integrated base weight enables safer attachment of pumps and additional devices
• Rounded bottle hooks minimize risk of injury
• Hook geometry prevents infusion bottles from slipping out

Application

• Comfortable height adjustment via screw mechanism with integrated clamping element for gentle surface contact
• Outer tube provides space to mount devices at an ergonomic operating height

Technical specifications

• Material: Stainless steel
• Color: White, RAL 9016
• Bottle holder: Stainless steel bottle bar (with safety hooks)
• Number of hooks: 6
• Arrangement of hooks: In line
• Type of height adjustment: Screw height adjustment
• Maximum length/height: 2200 mm
• Minimum length/height: 1690 mm
• Inner tube profile: Square, 25 mm
• Outer tube diameter: Ø 38 mm
• Length of outer tube: 1420 mm
• Base leg profile: 45 x 25 mm
• Base weight: Weighted
• Base diameter: Ø 860 mm
• Castors: Twin castors
• Castor diameter: Ø 100 mm
• Number of castors: 5 (with brakes and electrical conductivity)
• Total load capacity: 50 kg
• Load capacity per system: 12 kg
• Load capacity per hook: 2 kg
