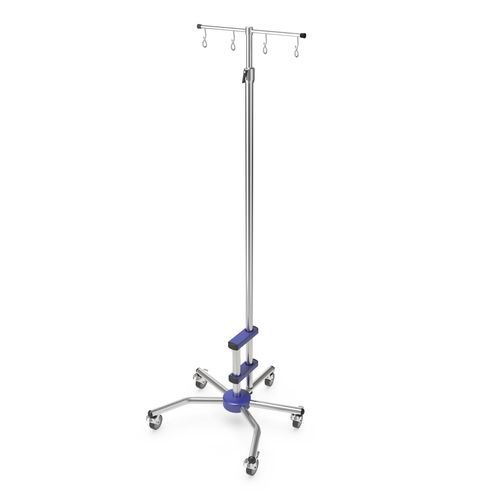

IV pole on casters I-PRE100

4-hookstainless steelaluminum

Overview Provita IV rods and stands are intended for use in physician practices as well as intensive and general care units. They are designed to meet hospital requirements and daily care routines and are supported by a wide accessory range.

Product highlights

• Softdrop system — controlled and dampened lowering of the inner tube for enhanced safety

Information

• Secure hanging of infusion bottles and bags for safe and effective infusion therapy
• Mobile design with flexible application options
• High resilience due to durable stainless steel and aluminium construction

Advantages

• Bottle bar compliant with DIN ISO 15375
• Reliable infusion management by secure bottle and bag fixation
• Mobile and flexible use across care settings
• Durability ensured by high-quality materials and machining

Technology

• Lightfast plastic components
• Stainless steel tubes manufactured to DIN EN 10217-7
• Enhanced stability from a machined aluminium foot base
• Integrated pull-out limiter prevents separation of adjustable tubes

Safety

• Base legs sealed with plastic plugs to reduce injury risk
• Built-in safety distance reduces pinch risk when extending/retracting the pole
• Cylindrical, polished base legs reduce surfaces that retain dirt and germs
• Softdrop system controls descent of the inner tube
• Rounded bottle hooks and hook geometry reduce risk of bottle falling or injury

Application

• Optimized for hygienic maintenance (wipe disinfection)
• Outer tube offers space to mount devices at ergonomic operating height

Product properties
Field of application: Intensive Care
Material: Stainless steel / Aluminium
Color: Blue
Colour of plastic parts: Black
Bottle Holder: Stainless steel bottle bar
Number of hooks: 4
Arrangement of the hooks: In line with each other
Type of height adjustment: Stainless steel screw height adjustment
Maximum length/height: 2.100 mm
Minimum length/height: 1.835 mm
Inner tube diameter: Ø 25 mm
Outer tube diameter: Ø 33.7 mm
Length of outer tube: 1.500 mm
Base leg profile: Ø 33.7 mm
Base weight: Weighted
Base diameter: 660 / 844 mm
Castors: Apparatus castors
Castor diameter: Ø 75 mm
Number of castors: 5 with brakes and electrical conductivity
Total load capacity (kg): 45
Load capacity per system (kg): 8
Load capacity per hook (kg): 2

Technical specifications

• Model / designation: I-PRE100 (IV Stand Premium Care)
• Material: Stainless steel / Aluminium
• Height adjustment: Stainless steel screw
• Height range: 1.835 mm — 2.100 mm
• Outer / inner tube diameters: Ø 33.7 mm / Ø 25 mm
• Base diameter: 660 / 844 mm; weighted base
• Castors: 5 apparatus castors (Ø 75 mm) with brakes and electrical conductivity
• Total load capacity: 45 kg
• Number of bottle hooks: 4 (stainless steel bottle bar)
