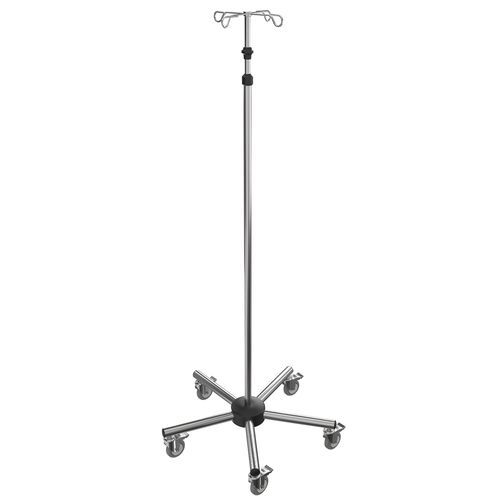

IV pole on casters I-PRE011

4-hookintensive careheight-adjustable

Information
Provita IV rods and stands are used across medical practices, intensive care units and general wards. To meet hospital and routine-care requirements, Provita provides dedicated drip-stand solutions for each application and a comprehensive accessory program.

Advantages

• Reliable infusion management by securely suspending bottles and infusion bags
• Mobile design for flexible use across clinical areas
• High durability due to quality materials and manufacturing

Technology

• All plastic parts are lightfast
• Stainless steel tubes according to DIN EN 10217-7
• Materials ultrasonic and eddy-current tested (according to EN 10246-9/3)
• Integrated pull-out limiter prevents the adjustable tubes from separating
• Safety bottle cross according to DIN ISO 15375
• Glass-fibre reinforced plastic base increases corrosion resistance

Economy

• Compact packaging reduces shipping volume and costs

Safety

• Base legs sealed with plastic plugs to eliminate injury risk
• Built-in safety distance reduces pinch risk when extending/retracting the IV pole
• Cylindrical, polished base legs limit surfaces where dirt and germs can accumulate
• Rounded bottle hooks eliminate sharp edges and reduce injury risk
• Hook geometry prevents infusion bottles from slipping out

Application

• Outer tube provides space to mount additional devices at an ergonomic working height

Technical specifications

• Product number: I-PRE011
• Field of application: Intensive Care
• Material: Stainless steel / Plastic
• Colour of plastic parts: Black
• Number of hooks: 4
• Arrangement of the hooks: 90° to each other
• Type of height adjustment: One-hand height adjustment
• Maximum length/height: 2.295 mm
• Minimum length/height: 1.520 mm
• Inner tube diameter: Ø 18 mm
• Outer tube diameter: Ø 25 mm
• Length of outer tube: 1.200 mm
• Base leg profile: Ø 33,7 mm
• Base weight: Weighted
• Base centre piece: Glasfiber reinforced Polyamide base
• Base diameter: Ø 655 mm
• Castors: Apparatus castors
• Castor diameter: Ø 75 mm
• Number of castors: 5 with brakes and elect. conductivity
• Total load capacity (kg): 18
• Load capacity per system (kg): 8
• Load capacity per hook (kg): 2
