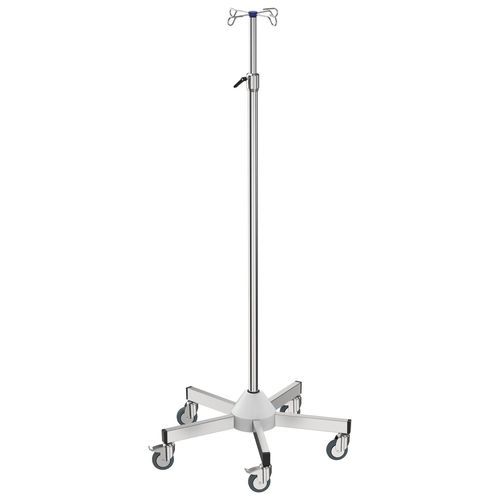

IV pole on casters I-D03123

4-hookstainless steelheight-adjustable

Product overview
Provita IV-Rods and Stands are used in many medical practices as well as in intensive and general care. Provita offers solutions for every application with a comprehensive accessory program. Product number: I-D03123. Material: stainless steel.

Product highlights

• Softdrop system for controlled lowering of the inner tube

Information

• Provita IV-Rods and Stands are intended for use in hospitals, clinics and medical practices.
• Designed for the requirements of intensive and general care with a wide accessory program.

Advantages

• Secure infusion management by safely hanging bottles and bags
• Mobile use with flexible application options

Technology

• All plastic parts are lightfast
• Stainless steel tubes according to DIN EN 10217-7
• Material ultrasonic and eddy current tested (according to EN 10246-9/3)
• Integrated pull-out limiter prevents the adjustable tubes from separating
• Safety bottle cross according to DIN ISO 15375
• A sealing cap prevents contamination of the IV pole from liquids
• Reinforced bottle holder allows hanging 5 L rinsing solutions

Safety

• Base legs sealed with plastic plugs (reduces risk of injury)
• Built-in safety distance minimises pinch risk when retracting/extending the pole
• Softdrop system damps and controls lowering of the inner tube
• Rounded bottle hooks reduce the risk of injury
• Hook geometry prevents infusion bottles from falling out

Application

• Outer tube provides space to attach various devices at an ergonomic operating height

Product properties / Technical data (table)
Field of application: Intensive Care
Material: Stainless steel
Color: White, RAL 9016
Bottle Holder: Stainless steel bottle cross for hammering in
Number of hooks: 4
Arrangement of the hooks: 90° to each other
Type of height adjustment: Stainless steel screw height adjustment
Maximum length/height: 2500 mm
Minimum length/height: 1560 mm
Inner tube diameter: Ø 25 mm
Outer tube diameter: Ø 33.7 mm
Length of outer tube: 1200 mm
Base leg profile: 45 x 25 mm
Base weight: Weighted
Base diameter: Ø 685 mm
Castors: Apparatus castors
Castor diameter: Ø 75 mm
Number of castors: 5; 3 with brakes and electrical conductivity
Total load capacity (kg): 25
Load capacity per system (kg): 8
Load capacity per hook (kg): 2

Packaging dimensions
Packaging unit: Unit
Width Box1: 0.31 m
Height Box1: 0.21 m
Length Box1: 1.59 m
Weight Box1: 10.70 kg

Characteristics / technical specifications

• Model name: Model Uni Düsseldorf s.s
• Product number: I-D03123
• Material: Stainless steel (DIN-compliant tubes)
• Height adjustable range: 1560 mm – 2500 mm (screw adjustment)
• Base diameter: Ø 685 mm with weighted base
• Hook system: 4 hooks at 90° with safety geometry; bottle cross to DIN ISO 15375
• Castors: 5 apparatus castors (Ø 75 mm), 3 with brakes and electrical conductivity
• Total load capacity: 25 kg (8 kg per system; 2 kg per hook)
