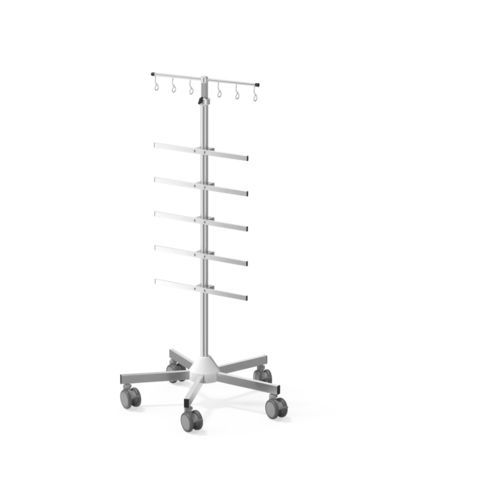

IV pole on casters I-PA2226

6-hookstainless steelheight-adjustable

Information
Provita IV rods and stands are used in clinics and physician practices for intensive and routine care. The I-PA2226 is a basic, hospital-oriented IV stand designed to provide secure and ergonomic support for infusion bottles, bags and attached devices.

Product highlights

• Basic model dedicated to reliable infusion management
• Stainless steel construction with integrated bottle bar
• 6 safety hooks in a linear arrangement

Advantages

• Secure hanging of infusion bottles and bags for stable infusion therapy
• User-friendly operating height for attaching pumps and accessories

Technology

• Lightfast plastic components
• Stainless steel tubes manufactured according to DIN EN 10217-7
• Materials ultrasonic and eddy-current tested (EN 10246-9/3)
• Integrated pull-out limiter prevents unintended separation of adjustable tubes

Safety

• Base legs sealed with plastic plugs to eliminate risk of injury
• Built-in safety distance reduces pinch risk when extending/retracting the pole
• Integrated base weight provides stable attachment point for pumps and equipment
• Rounded bottle hooks prevent injury and reduce risk of bottles slipping out

Application

• Outer tube provides space to mount devices at an ergonomic operating height

Technical specifications

• Article number: I-PA2226
• Material: Stainless steel
• Color: White, RAL 9016
• Bottle holder: Stainless steel bottle bar (integrable bottle rail, 4/6/8 bottle safety hooks)
• Number of hooks: 6
• Arrangement of the hooks: In line with each other
• Type of height adjustment: Screw height adjustment
• Maximum height: 2,200 mm
• Minimum height: 1,690 mm
• Inner tube profile: Square, 25 mm
• Outer tube diameter: Ø 38 mm
• Length of outer tube: 1,420 mm
• Base leg profile: 45 x 25 mm
• Base weight: Weighted
• Base diameter: Ø 860 mm
• Castors: Twin castors
• Castor diameter: Ø 100 mm
• Number of castors: 5 with brakes and electrical conductivity
• Total load capacity: 50 kg
• Load capacity per system: 12 kg
• Load capacity per hook: 2 kg
• Packaging unit: Unit
• Packaging dimensions (Box1) - Width: 0.31 m; Height: 0.21 m; Length: 1.59 m; Weight: 25.70 kg
