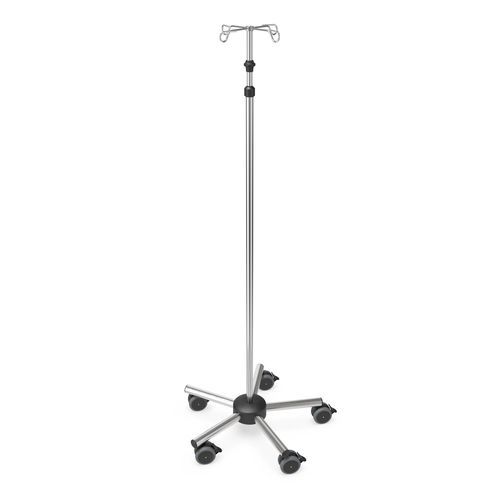

IV pole on casters I-PRE002

4-hookstainless steelheight-adjustable

Product overview
Provita IV rods and stands – model Premium Care – designed for intensive care and general ward use. Four hooks arranged at 90° provide secure suspension for infusion bottles and bags. Height adjusts single-handed from 1500 mm to 2350 mm. Base: glass-fiber reinforced polyamide centre with weighted design; Ø 580 mm.

Key benefits

• Secure support for infusion containers with 4-hook 90° arrangement
• Mobile use with five twin castors (brakes and electrical conductivity)
• Durable construction using stainless steel tubes and lightfast plastics

Technology

• All plastic parts are lightfast
• Stainless steel tubes according to DIN EN 10217-7
• Materials ultrasonic and eddy-current tested (EN 10246-9/3)
• Integrated pull-out limiter prevents separation of adjustable tubes
• Safety bottle cross according to DIN ISO 15375
• Welded stainless steel castor pins to reduce corrosion risk and improve hygiene

Safety

• Base legs sealed with plastic plugs to reduce risk of injury
• Built-in safety distance reduces pinch risk when extending/retracting the pole
• Cylindrical polished base legs minimise areas for dirt and microbes
• Rounded bottle hooks and hook geometry prevent bottles from falling out and lower injury risk

Application

• Outer tube offers space to attach devices at a user-friendly operating height; suitable for intensive care and routine ward use

Technical specifications

• Field of application: Intensive Care
• Material: Stainless steel / Plastic
• Colour of plastic parts: Black
• Number of hooks: 4 (arranged 90° to each other)
• Height adjustment: One-hand height adjustment; range 1500 mm – 2350 mm
• Tube diameters: inner Ø 18 mm; outer Ø 25 mm
• Length of outer tube: 1200 mm
• Base centre: Glass-fiber reinforced polyamide; base diameter Ø 580 mm; base leg profile Ø 33.7 mm; weighted base
• Castors: Twin castors; total 5 castors with brakes and electrical conductivity; welded stainless steel castor pins
• Load capacities: Total 13 kg; per system 8 kg; per hook 2 kg
• Standards / tests: Stainless steel tubes according to DIN EN 10217-7; material ultrasonic and eddy-current tested (EN 10246-9/3); safety bottle cross according to DIN ISO 15375

Packaging dimensions (Box 1)

• Packaging unit: Unit
• Width: 0.21 m
• Height: 0.13 m
• Length: 1.47 m
• Weight: 7.50 kg
