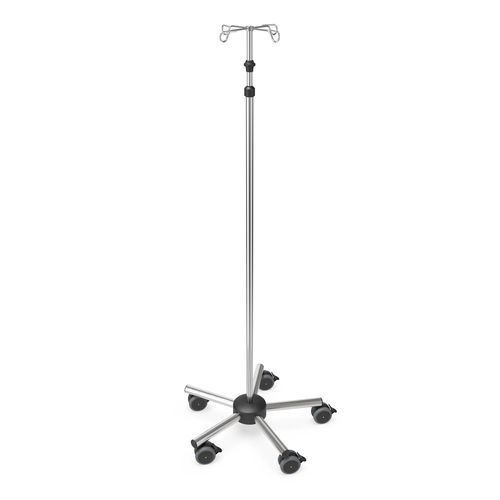

IV pole on casters I-PRE004

4-hookstainless steelheight-adjustable

Information
Provita IV-Rods and Stands are used in hospitals, intensive care units and medical practices. The Premium Care IV stand is designed for clinical workflows, offering secure suspension of infusion bottles and bags and compatibility with a wide accessory range for different care scenarios.

Advantages

• Reliable infusion handling by secure hanging of bottles and infusion bags
• Mobile design with flexible placement and handling
• Durable construction using stainless steel tubes and tested plastics

Technology

• Lightfast plastic components
• Stainless steel tubing manufactured to DIN EN 10217-7
• Material tested by ultrasonic and eddy-current methods (EN 10246-9/3)
• Stability provided by a machined aluminum foot base
• Integrated pull-out limiter prevents separation of adjustable tubes
• Safety bottle cross compliant with DIN ISO 15375

Economy

• Compact packaging format reduces shipping costs

Safety

• Base legs sealed with plastic plugs to prevent injuries
• Built-in safety distance reduces pinch risk when extending/retracting the pole
• Cylindrical polished base legs minimise surfaces where dirt and germs accumulate
• Rounded bottle hooks reduce injury risk
• Hook geometry prevents infusion bottles from slipping out

Application

• Outer tube provides space to attach monitoring devices or accessories at an ergonomic operating height

Technical specifications

• Field of application: Intensive Care
• Material: Stainless steel / Plastic
• Colour of plastic parts: Black
• Number of hooks: 4
• Arrangement of the hooks: 90° to each other
• Type of height adjustment: One-hand height adjustment
• Maximum height: 2350 mm
• Minimum height: 1500 mm
• Inner tube diameter: Ø 18 mm
• Outer tube diameter: Ø 25 mm
• Length of outer tube: 1200 mm
• Base leg profile: Ø 33.7 mm
• Base weight: Unweighted
• Base centre piece: Glass-fiber reinforced polyamide base
• Base diameter: Ø 655 mm
• Castors: Twin castors
• Castor diameter: Ø 75 mm
• Number of castors: 5 with brakes and electrical conductivity
• Total load capacity (kg): 13
• Load capacity per system (kg): 8
• Load capacity per hook (kg): 2
• Packaging unit: Unit
• Packaging dimensions (Box1) - Width: 0.21 m; Height: 0.13 m; Length: 1.47 m; Weight: 7.50 kg
