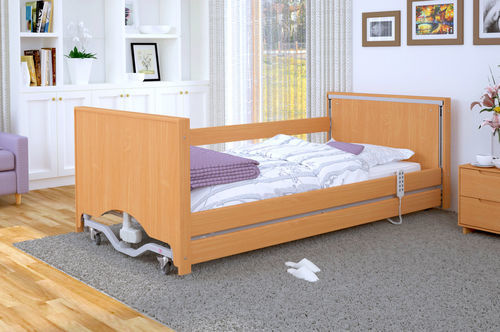

Medical bed TAURUS 2 LOW LUX

electricheight-adjustableTrendelenburg

TAURUS 2 LOW LUX is a four-column rehabilitation bed derived from the Taurus series, redesigned to improve stability, comfort and compactness for environments with limited space. The LUX version features fully enclosed head and foot panels that conceal technical components and deliver a more elegant, home-like appearance.

Product overview:

• Construction: four-column frame providing high stability and safe lifting range.
• Mattress platform: four-section platform; available with metal slats for easy disinfection or flexible wooden slats.
• Bed ends: enclosed LUX head and foot panels in laminated board with solid beech wood; upholstered panels available on request.
• Castors: four Ø100 mm castors with directional and total locking system; rear-positioned total lock for secure positioning.
• Control: ergonomic 10-function hand controller with key-operated movement lockout.
• Low positioning: innovative frame permits an extremely low mattress platform to improve patient safety and independent transfers.
• Compact design: reduced overall length to suit rooms with limited space.
• Available versions: TAURUS 2 M (metal mattress platform) and TAURUS 2 W (wooden mattress platform).

Technical specifications:

• Overall width x length: 105 x 214 cm.
• Mattress platform width x length: 90 x 200 cm.
• Height adjustment range: 21 – 63 cm.
• Trendelenburg angle: 12°.
• Reverse Trendelenburg angle: 12°.
• Maximum working load: 215 kg.
• Maximum patient weight: 180 kg.
• Castors: Ø100 mm; housing: steel; wheel material: polypropylene with thermoplastic rubber (TPR) coating.
• Mattress platform details: four-section; backrest electrically adjustable via hand controller; lower leg section adjusted via ratchet mechanism.
• Sockets for additional equipment: dedicated sockets on both right and left sides at the head end for accessories (e.g., lifting pole, IV drip stand).
• Warranty: 2 years.

Options and accessories:

• Optional Bed Extension Kit: extends bed length by 20 cm; includes extension frame and extended side rails; easy self-installation without affecting bed functionality.
• Dedicated transport adapter available for safe storage and transport.
• Upholstered head/foot panels available on request.

Finishes & ordering:

• Wood finishes (standard and custom): BEECH, LIGHT OAK, DARK WALNUT CARAVAGGIO, OAK SONOMA TABAC, OAK SONOMA LIGHT, OAK GOLDEN CRAFT; custom colour option available at additional charge.
• Available configurations and options should be specified at order to ensure correct delivery and accessories.
