Hospital bed Bariatric 2 LOW LUX
electricbariatricheight-adjustable

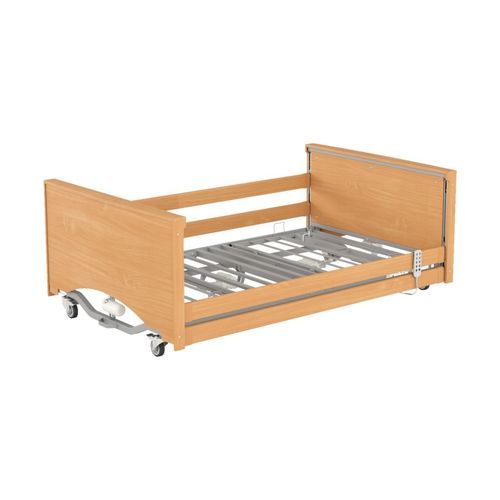

Hospital bed - Bariatric 2 LOW LUX - Reha-Bed - electric / bariatric / height-adjustable
Hospital bed - Bariatric 2 LOW LUX - Reha-Bed - electric / bariatric / height-adjustable
Hospital bed - Bariatric 2 LOW LUX - Reha-Bed - electric / bariatric / height-adjustable - image - 2
Hospital bed - Bariatric 2 LOW LUX - Reha-Bed - electric / bariatric / height-adjustable - image - 3
Hospital bed - Bariatric 2 LOW LUX - Reha-Bed - electric / bariatric / height-adjustable - image - 4
Hospital bed - Bariatric 2 LOW LUX - Reha-Bed - electric / bariatric / height-adjustable - image - 5
Hospital bed - Bariatric 2 LOW LUX - Reha-Bed - electric / bariatric / height-adjustable - image - 6
Add to favorites
Compare this product
Go to the Reha-Bed website for more information

Characteristics

Applications
hospital
Operation
electric
Patient type
bariatric
Features
height-adjustable, Trendelenburg, reverse Trendelenburg, low height
Component
on casters, with locking wheels, column type
Number of sections
4-section
Height

Max.: 660 mm
(25.98 in)

Min.: 230 mm
(9.06 in)

Width

135 cm
(53.1 in)

Length

220 cm
(86.6 in)

Weight capacity

372 kg
(820.1 lb)

Description

Overview

Product overview:
  • CONSTRUCTION: Column-type four-column reinforced frame in powder-coated steel with steel slats; wooden elements in laminated board and solid beech.
  • MATTRESS PLATFORM: Four-section metal-slat platform for easy disinfection; electrically adjustable backrest section; lower leg section adjustable by ratchet.
  • BED ENDS: Enclosed (LUX) bed ends conceal structural elements and actuators for a homelike appearance.
  • CASTORS: Four castors Ø100 mm with directional and total (rear-positioned) lock; steel housings; polypropylene wheels with TPR coating.
  • CONTROL: Ergonomic 10-function hand controller with key-operated lockout.
  • HEIGHT ADJUSTMENT: Mattress platform height adjustable from 23 to 66 cm (LOW version lowest position 23 cm).
  • MAXIMUM WORKING LOAD / PATIENT WEIGHT: Maximum working load up to 372 kg; recommended patient weight up to 320 kg.
  • AUTOREGRESSION: Backrest moves backwards during profiling to reduce shear and friction; autoregression 4 cm.
  • LOWED POSITION: LOW version lowers the mattress platform to 23 cm above the floor for fall‑risk situations.
  • SIDE RAILS: Fully lowered side-rail position available to facilitate patient mobility while maintaining safety elements.
  • SOCKETS FOR ADDITIONAL EQUIPMENT: Dedicated sockets at both sides of the head end for accessories (lifting pole, IV drip stand, etc.).
  • BED EXTENSION KIT (Optional): Optional 20 cm bed extension kit (extension frame and extended side rails); designed for easy self-installation without affecting bed functionality.
  • FINISHES: Available in a wide range of wood-colour finishes; custom colours available on request.


Additional details:
  • Four-column construction ensures stability even at maximum height; all construction elements designed for easy and quick disinfection.
  • Covered (LUX) bed ends conceal actuators and give a homelike appearance.


Technical specifications:
  • Overall width x length: 135 x 220 cm
  • Mattress platform width x length: 120 x 200 cm
  • Height adjustment (mattress platform): 23 – 66 cm
  • Lowest mattress height above floor (LOW version): 23 cm
  • Trendelenburg angle: 0 – 12°
  • Reverse Trendelenburg angle: 0 – 12°
  • Number of mattress sections: Four-section platform
  • Autoregression (backrest): 4 cm
  • Castors: Ø100 mm with directional and total lock; steel housing; polypropylene wheels with TPR coating
  • Control: 10-function hand controller with lockout key
  • Maximum working load: 372 kg
  • Maximum patient weight: 320 kg
  • Warranty: 2 years
