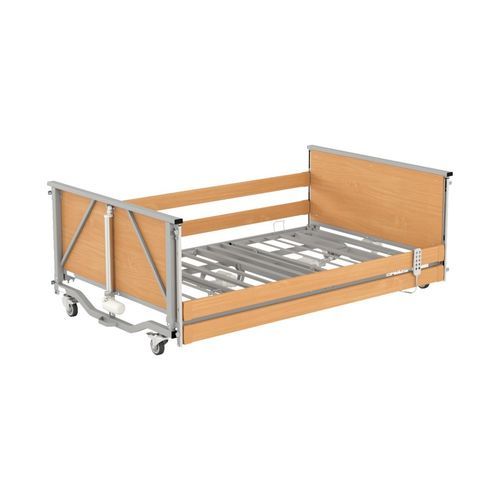

Hospital bed 2 LOW

electricbariatricheight-adjustable

Bariatric 2 LOW Rehabilitation Bed is designed for patients who require special support due to their size and weight, offering reinforced construction, an increased mattress width and a low mattress platform position for improved comfort and safety. The LOW version lowers the mattress platform to 23 cm above the floor to reduce fall risk and ease transfers.

Product overview:

• CONSTRUCTION: Column-type, four-column frame for stability; frame made of powder-coated steel profiles; four-section frame with steel slats; wooden elements in laminated board and solid beech; all components designed for easy and rapid disinfection.
• MATTRESS PLATFORM: Four-section metal-slat platform for hygiene and disinfection; electrically adjustable backrest; lower leg section adjusted by ratchet mechanism.
• BED ENDS: Non-enclosed design for caregiver access.
• CASTORS: Four Ø100 mm castors with directional and total lock; housings in steel; wheels in polypropylene with thermoplastic rubber coating.
• CONTROL: Ergonomic 10-function hand controller with key-operated lockout.
• SOCKETS FOR ADDITIONAL EQUIPMENT: Dedicated sockets on both right and left sides at the head end for accessories (e.g., lifting pole, IV stand).
• BED EXTENSION KIT (OPTIONAL): Extends bed length by 20 cm; includes extension frame and extended side rails; designed for easy self-installation without affecting bed functionality.
• LOWERED SIDE RAILS POSITION: Side rails can be fully lowered to allow patient freedom of movement while maintaining safety features that do not obstruct care ergonomics.
• AUTOREGRESSION: Backrest section moves rearward during profiling to reduce shear and friction; autoregression (available in related models) provides body-length compensation during sitting profiling.
• AVAILABLE FINISHES: Wide range of wood-colour finishes (standard and non-standard; custom colours available at additional charge).

Additional descriptive features:
The LOW version reduces the mattress platform height using a reinforced frame and 50 mm castors, making the bed suitable for shorter patients or clinical environments where fall risk mitigation is required. A wider mattress platform (120 cm) accommodates bariatric patients. Reinforced construction and dedicated actuators increase the maximum working load. The ergonomic hand controller provides comfortable operation and easy access to all adjustments.

Specifications / technical characteristics:

• Overall width × length: 132 × 220 cm
• Mattress platform width × length: 120 × 200 cm
• Height adjustment (mattress platform): 23 – 66 cm (LOW version lowest position above floor: 23 cm)
• Trendelenburg angle: 0 – 12°
• Reverse Trendelenburg angle: 0 – 12°
• Maximum working load: 372 kg
• Maximum patient weight: 320 kg
• Castors: 4 × Ø100 mm with directional and total lock; housing: steel; wheel material: polypropylene with thermoplastic rubber coating
• Mattress platform: Four-section metal slats; electrically adjustable backrest; ratchet lower leg section
• Control: 10-function hand controller with lockout feature (key-operated)
• Warranty: 2 years
