Medical bed Taurus 2 WIDE

hospitalmanualelectric

The Taurus 2 WIDE is an extra-wide rehabilitation bed combining the proven features of the Taurus series with solutions to improve patient comfort, stability and ergonomics.

Product overview:

• CONSTRUCTION: Column type, four-column construction for increased stability; powder-coated finish.
• MATTRESS PLATFORM: Four-section mattress platform; available with metal slats (easy disinfection) or flexible wooden slats.
• BED ENDS: Non-enclosed bed ends made of laminated board and solid beech wood; actuators and side rail guide mechanisms are exposed on the WIDE model.
• CASTORS: Four castors Ø75 mm with directional and total lock; housing: steel; wheel material: polypropylene with thermoplastic rubber coating.
• CONTROL: 10-function ergonomic hand controller with lockout feature operated by a key; backrest section adjustable electrically; lower leg section adjusted by ratchet mechanism.
• HEIGHT ADJUSTMENT: 39–81 cm.
• MAXIMUM WORKING LOAD: 215 kg.
• MAXIMUM PATIENT WEIGHT: 180 kg.
• WARRANTY: 2 years.

Functional features and accessories:

• Sockets for additional equipment located on both the right and left sides at the head end of the bed for accessories such as a lifting pole or IV stand.
• Optional Bed Extension Kit (available): extends bed length by 20 cm; includes extension frame and extended side rails; designed for easy self-installation without affecting bed functionality.
• Easy transport and storage using a dedicated transport adapter.
• Available in a wide range of wood finishes (standard and non-standard colours; custom colours may carry an additional charge).

Basic technical parameters:

• Overall width x length: 132 x 212 cm
• Mattress platform width x length: 120 x 200 cm
• Height adjustment range: 39 - 81 cm
• Trendelenburg angle: 12°
• Reverse Trendelenburg angle: 12°

Additional notes:

• Four-section platform: backrest electrically adjustable via the hand controller; lower leg section adjusted by ratchet.
• Lowered side rails can be completely lowered to facilitate getting up and sitting down while maintaining safety elements.

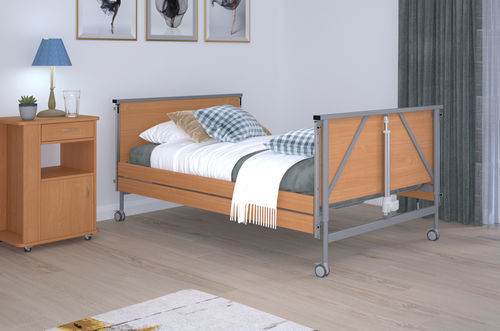

• The image of the rehabilitation bed is for illustrative purposes only; finish and equipment details are agreed individually.

Technical specifications:

• Model: Taurus 2 WIDE
• Construction: four-column
• Platform sections: four-section (metal slats or flexible wooden slats)
• Mattress platform width: 120 cm
• Overall dimensions: 132 x 212 cm
• Height adjustment: 39–81 cm
• Trendelenburg / Reverse Trendelenburg: 12° / 12°
• Castors: Ø75 mm with directional and total lock; steel housing; polypropylene wheel with TPR coating
• Control: 10-function hand controller with movement lockout (key)
• Maximum working load: 215 kg
• Maximum patient weight: 180 kg
• Warranty: 2 years
• Optional: Bed Extension Kit (+20 cm), transport adapter, sockets for additional equipment
• Bed ends: laminated board and solid beech wood (non-enclosed)
• Available finishes: Beech, Light Oak, Dark Walnut Caravaggio, Oak Sonoma Tabac, Oak Sonoma Light, Oak Golden Craft (custom colours: +15% where indicated)
