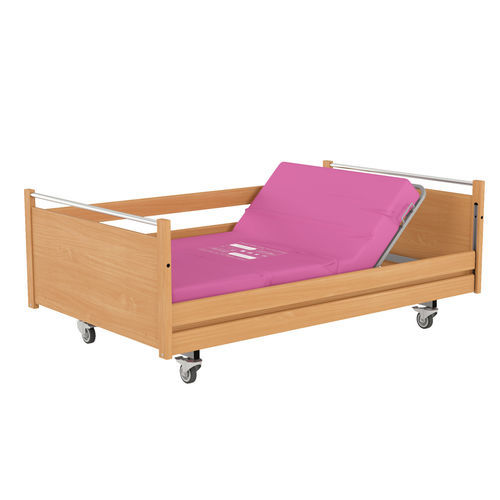

Hospital bed Leo WIDE L

nursing homeelectricheight-adjustable

Leo WIDE L is a wider version of the standard Leo rehabilitation bed that increases the mattress platform width to enhance patient comfort while keeping the main construction unchanged.

Product overview:

• Construction: Pantograph design providing flexibility and modern appearance; electrical components (actuators, control box) are concealed under the mattress platform.
• Bed ends: Independent from the main construction; removable; made of laminated board and solid beech wood. Available options: L-01 (wooden bed end with chrome tube) and L-02 (wooden bed end with wooden slat).
• Side rails: Full-length side rails for patient protection.
• Control: Ergonomic 10-function hand controller with lockout feature for bed movements.
• Castors and mobility: Choice of plastic or metal wheels; optional concealed variant for 50 mm wheels. Locking options include individual wheel locking (standard), axial locking and central locking.

Characteristics / Technical specifications:

• Overall width x length: 127 x 208 cm
• Mattress platform width x length: 110 x 200 cm
• Mattress platform type: Four-section, metal slats for easy disinfection
• Height adjustment range: ~31 - 78 cm
• Trendelenburg angle: 15°
• Reverse Trendelenburg angle: 17°
• Maximum working load: 215 kg
• Maximum patient weight: 180 kg
• Control: 10-function hand controller (ergonomic, with lockout)
• Castors: Standard Ø100 mm castors with directional and total lock (options available)
• Warranty: 2 years

Options & accessories:

• Bed-end variants L-01 and L-02
• Wheel choices: plastic or metal; concealed 50 mm wheel option
• Locking systems: individual wheel locking, axial locking, central locking
• Optional accessories available on request (specify at order)

Recommended use and maintenance:

• Designed for rehabilitation units, long-term care and hospitals
• Metal slat mattress platform allows easy disinfection and routine cleaning
• Removable bed ends permit access for maintenance and cleaning
• Follow manufacturer instructions for electrical components and annual checks
