Hospital bed 2 LUX

electricbariatricheight-adjustable

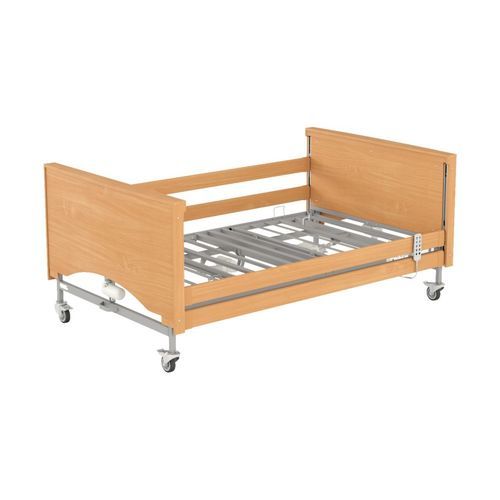

Bariatric 2 LUX is a reinforced rehabilitation bed designed for patients requiring increased support due to their size and weight. The LUX version features covered (enclosed) bed ends that conceal the structure and actuators, improving the bed's homelike appearance while enhancing comfort and safety.

Product overview:

• Column-type, four-column construction designed for high stability.
• Four-section mattress platform for profiling and comfort.
• Enclosed (covered) bed ends in the LUX version to conceal actuators and structure.
• Ergonomic hand controller with multiple adjustment functions and a lockout feature.
• Castors fitted with directional and total locking system for secure positioning.
• Designed for easy disinfection; metal parts use powder-coated steel profiles and steel slats; wooden elements use laminated board and solid beech.
• Lowerable side rails to facilitate patient transfer and increase ergonomics of care.
• Sockets for additional equipment (installed at the head end on both sides) for accessories such as lifting pole or IV stand.
• Optional bed extension kit to increase length for taller patients and a dedicated transport adapter for easier storage and transport.

Features and construction details:

• Four-column frame with powder-coated steel profiles and steel slat mattress platform for disinfection-friendly design.
• Backrest electrically adjustable; lower leg section adjusted via ratchet mechanism.
• Auto-regression feature in the backrest section to reduce shear and friction during profiling into a sitting position.
• Dedicated sockets on both left and right sides at the head end for easy installation of accessories.
• Bed ends covered in LUX version to conceal actuators and structural components.

Technical specifications:

• Overall width x length: 135 x 220 cm
• Mattress platform width x length: 120 x 200 cm
• Mattress platform: four-section (metal slats)
• Height adjustment: 39 – 81 cm
• Trendelenburg angle: 0 – 12°
• Reverse Trendelenburg angle: 0 – 12°
• Maximum working load: 372 kg
• Maximum patient weight: 320 kg
• Warranty: 2 years
• Autoregression (backrest moving backwards while profiling): 4 cm
• Castors: four Ø75 mm castors with rear-positioned total locking system; housing: steel; wheel material: polypropylene with thermoplastic rubber coating
• Control: ergonomic hand controller with 10 functions and lockout feature (key-operated)
• Bed extension kit (optional): extends bed length by 20 cm; includes extension frame and extended side rails; designed for easy self-installation without affecting bed functionality
• Sockets for additional equipment located on both sides at the head end
• Easy storage and transport via dedicated transport adapter
• Available wood finishes (standard and non-standard); custom colour option available with additional charge: +15%
• Typical wood finish options: BEECH; LIGHT OAK; DARK WALNUT CARAVAGGIO; OAK SONOMA TABAC; OAK SONOMA LIGHT; OAK GOLDEN CRAFT
